CS-DPT25-LVL-1419-D-AR

Carli Pintop 2.5 Leveling System, Base, 2.5” Lift, 2014-22 Ram 2500, Air Rear

Product Details

Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter (2.5”) shocks. They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

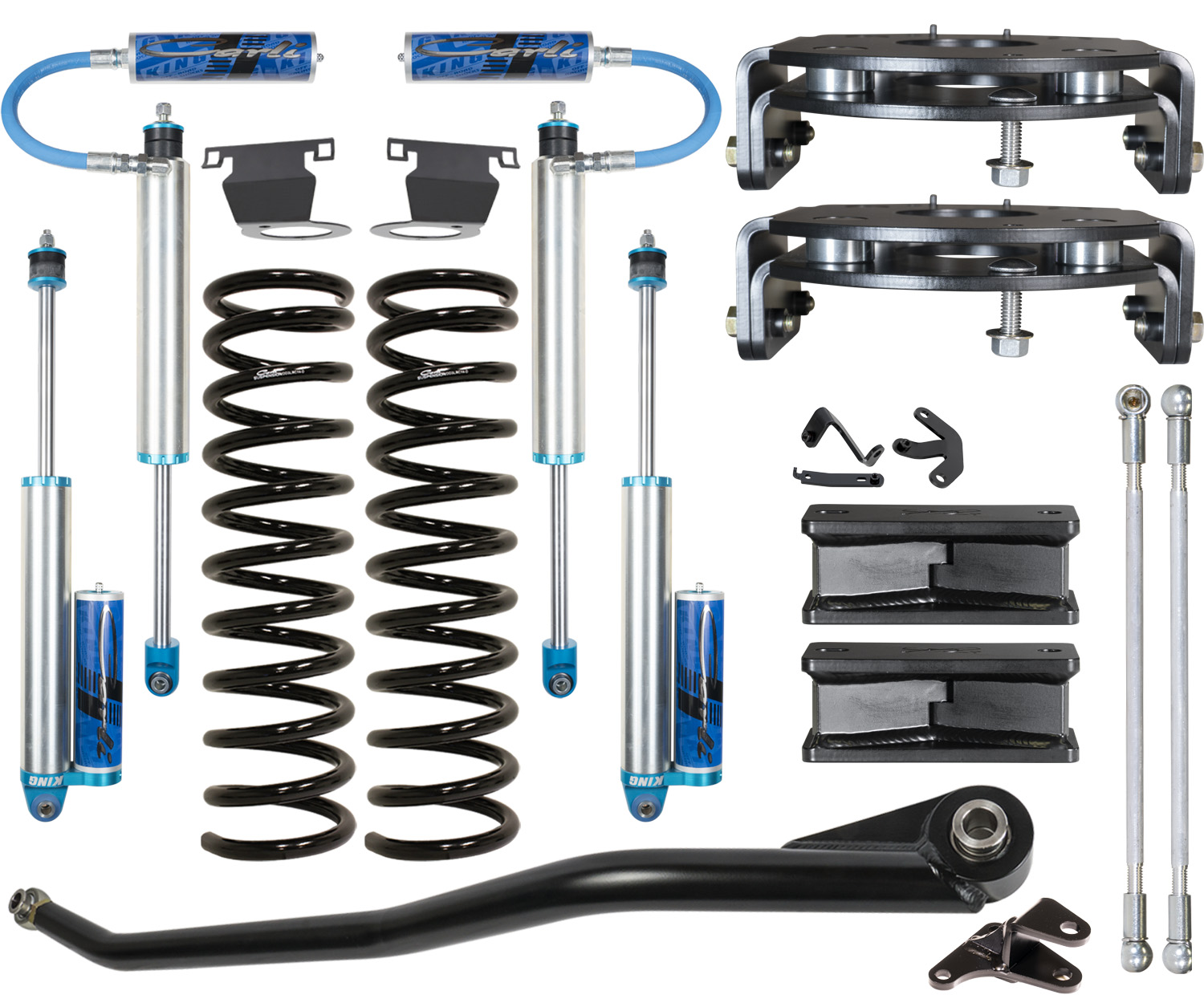

System includes Multi-rate front coil springs, front and rear shock package, rear air ride components and adjustable track bar.
The Ultimate Performance Leveling System. For those that love the way their Ram tows from the factory but don’t want to be limited to a crawl when leaving the pavement, this is the perfect kit.
Increases wheel travel to 8.3" front and 9" rear.

Technical Notes

Compatible with Factory Rear Air Suspension ONLY
Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-DSBD-14 or CS-DTSB3-1419
Radius Arms: CS-DFRA-14
Steering Stabilizer - High mount: CS-DHMSS-14
Steering Stabilizer - Low mount: CS-DLMSS-14
Ball Joints: CS-DBJP-14
Front Diff Guard: CS-DFDG-14

Warranty Information

Warranty information unavailable

Compatible Make / Model

Ram 2500 (2014-2023)

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Compatible with Factory Rear Air Suspension ONLY Required and Optional Parts to support this system: Sway Bar Options (REQUIRED): CS-DSBD-14 or CS-DTSB3-1419 Radius Arms: CS-DFRA-14 Steering Stabilizer - High mount: CS-DHMSS-14 Steering Stabilizer - Low mount: CS-DLMSS-14 Ball Joints: CS-DBJP-14 Front Diff Guard: CS-DFDG-14
UPC	883584151326
ProxyNumber	15132
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	133.0000 lb
