CS-DPT25-LVL-19-D-3500

Carli Pintop 2.5 Leveling System, Base, 2.5" Lift, 2019-22 Ram 3500, Diesel, 4x4

Product Details

Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter shocks. They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

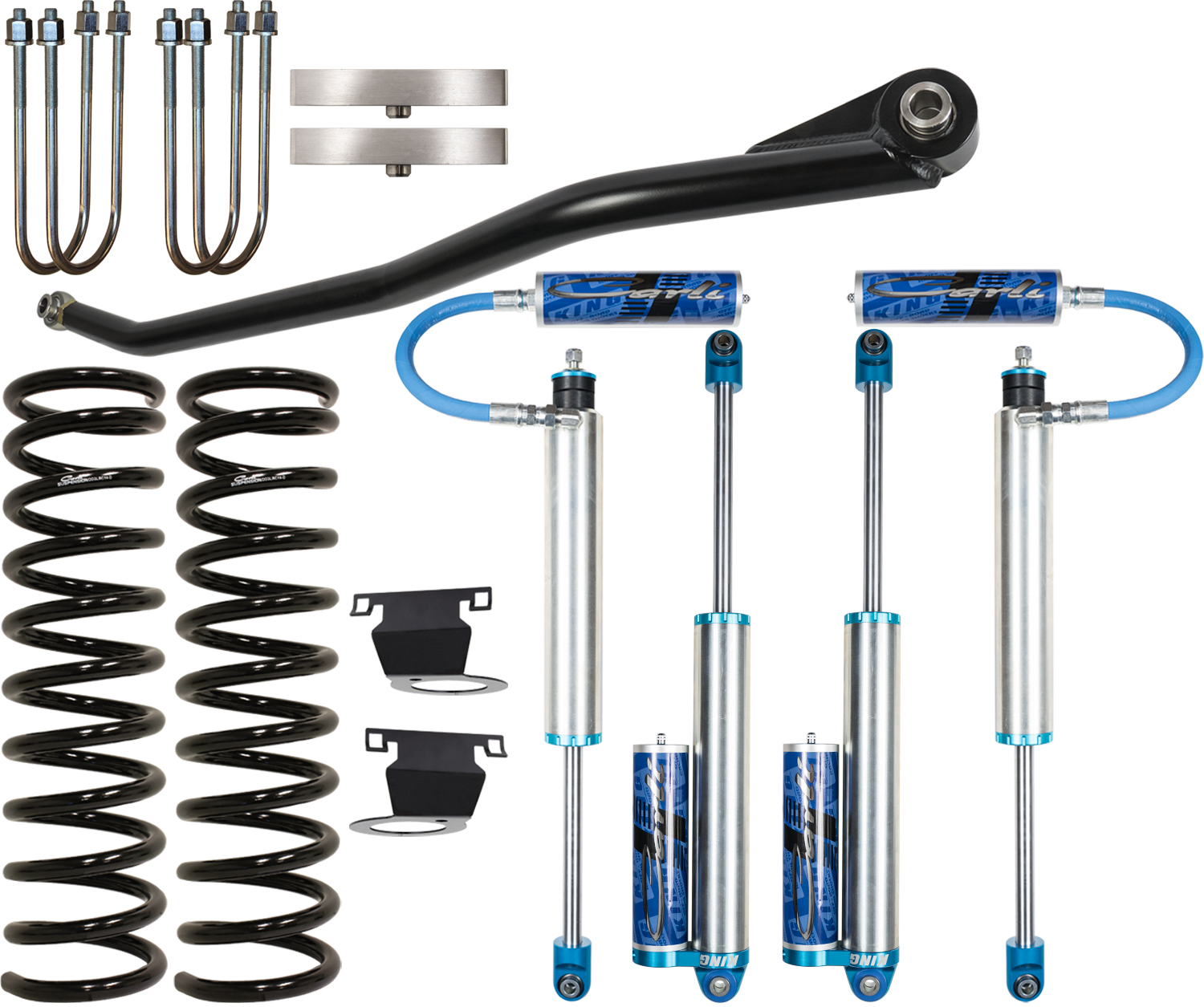

System includes Multi-rate front coil springs, front and rear shock package, and adjustable track bar.
Experience smooth and controlled rides with Carli Tuned King 2.5 Remote Reservoir Shocks equipped with stainless steel shafts for maximum durability.
Increases wheel travel to 9.5" front and 11" rear.
Allows for fitment of 35" tires.

Technical Notes

Optional Parts to support this system:
Sway Bar Options: CS-DTSB3-1419
Radius Arms: CS-DFRA-LVL-14
Radius Arm Drop Bracket: CS-DRAD-1419
Leaf Spring Shackle: CS-DSHACKLE-13
Steering Stabilizer - High mount: CS-DHMSS-19
Ball Joints: CS-DBJP-14

Warranty Information

Warranty information unavailable

Compatible Make / Model

Ram 3500 (2019-2023)

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Optional Parts to support this system: Sway Bar Options: CS-DTSB3-1419 Radius Arms: CS-DFRA-LVL-14 Radius Arm Drop Bracket: CS-DRAD-1419 Leaf Spring Shackle: CS-DSHACKLE-13 Steering Stabilizer - High mount: CS-DHMSS-19 Ball Joints: CS-DBJP-14
UPC	883584135845
ProxyNumber	13584
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	132.0000 lb
