CS-F45-BC-CS-08

Carli Backcountry 2.0 System, Base, 4.5” Lift, 2008-10 Ford F250/F350, Diesel

Product Details

The Backcountry System is made for those seeking the best ride on and off-road without breaking the bank; You’re no longer limited to the highway while gravel roads become dull as you can drive them at speed with one hand on the wheel.

Features Carli-Tuned remote reservoir 2.0 shocks which provide a more comfortable on-road feel and better offr-road performance. Corrosion resistant aluminum bodies provide long-lasting finish.

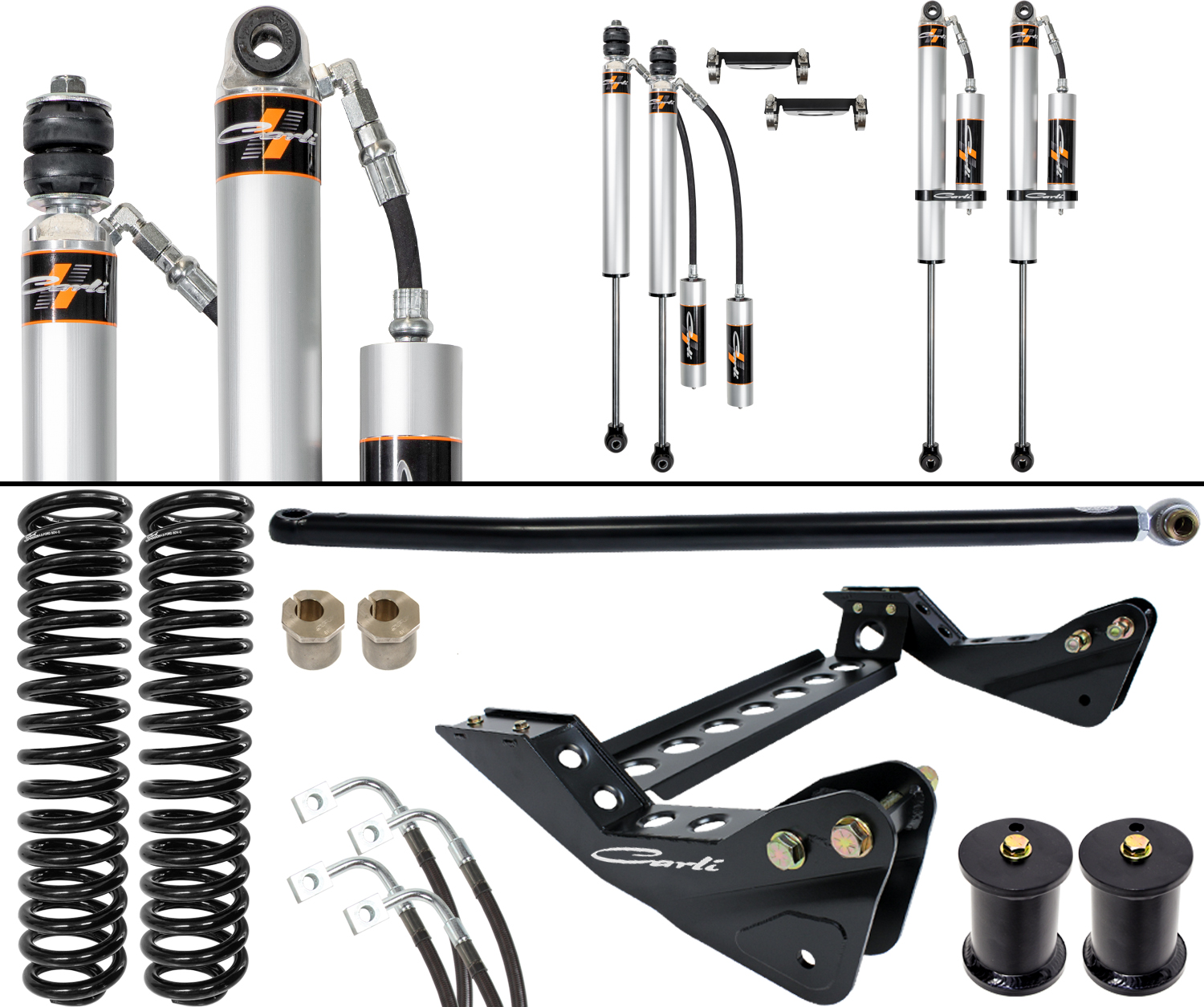

System includes front and rear shock package, brake line kit, radius arm drop brackets bump stop drops, caster correction shims and adjustable track bar.
Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
Increases wheel travel to 11.3" front and 13.8" rear.
Requires but does not include rear leaf spring option and sway bar option.

Technical Notes

Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-DTSB3-1419 or CS-DSBD-14
Radius Arms: CS-DFRA-14
Leaf Spring Options (REQUIRED): CS-DPAP-03-D or CS-DFSP-13-D
Leaf Spring Shackle: CS-DSHACKLE-13
Steering Stabilizer - High mount: CS-DHMSS-14
Steering Stabilizer - Low mount: CS-DLMSS-14

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Required and Optional Parts to support this system: Sway Bar Options (REQUIRED): CS-DTSB3-1419 or CS-DSBD-14 Radius Arms: CS-DFRA-14 Leaf Spring Options (REQUIRED): CS-DPAP-03-D or CS-DFSP-13-D Leaf Spring Shackle: CS-DSHACKLE-13 Steering Stabilizer - High mount: CS-DHMSS-14 Steering Stabilizer - Low mount: CS-DLMSS-14
UPC	883584151371
ProxyNumber	15137
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	208.0000 lb
