CS-F45-CO25-11

Carli Coilover 2.5 System, Base, 4.5” Lift, 2011-16 Ford F250/F350, Diesel, 4x4

Product Details

The Coilover System is designed for the Customer wanting the performance of the pintop but has aa deep appreciation for the eye catching appeal of a coilover shock. Fantastic performance on and off road, this system has it all.

Features King 2.5 remote reservoir coilover up front and 2.5 remote reservoir shocks in the rear for a great ride and stylish appearance.
The Coilover system is perfect for anyone planning to run a large heavy bumper or winch on the front of their truck. By adjusting the coilover preload, you can compensate for the added weight.

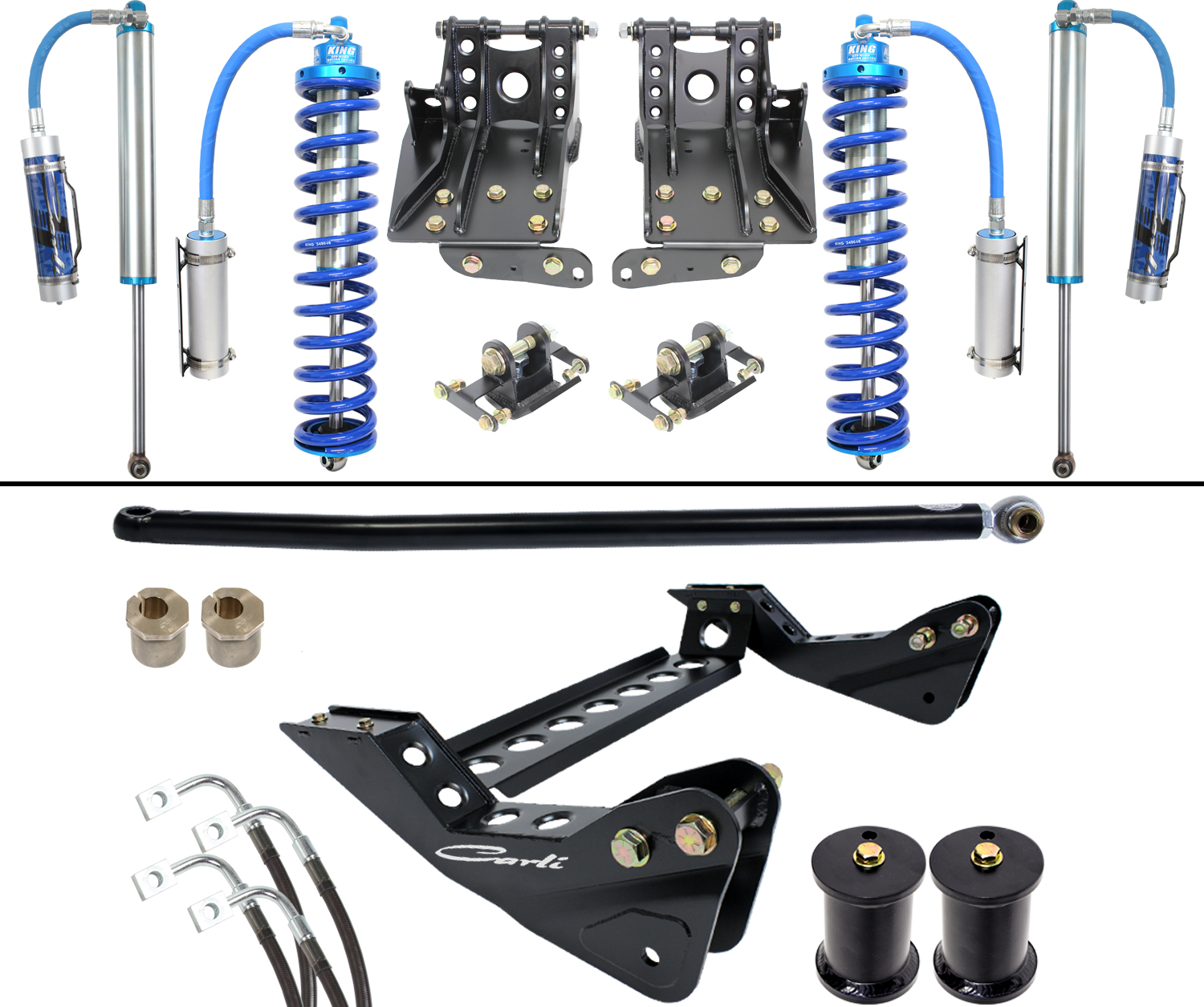

System includes front and rear shock package, coilover mount kit, brake line kit, radius arm drop brackets bump stop drops, caster correction shims and adjustable track bar.
Increases wheel travel to 10" front and 13" rear.
Requires but does not include rear leaf spring option and sway bar option.

Technical Notes

Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-FTSB-45-11 or CS-FSBD-11
Radius Arms: CS-FARA-45-05
Leaf Spring Options (REQUIRED): CS-FFSP-11 or CS-FPAP-11
Leaf Spring Shackle: CS-FSHACKLE-11
Long Travel Bags: CS-FLTB-08
Steering Stabilizer - High mount: CS-FHMSS-08
Steering Stabilizer - Low mount: CS-FLMSS-05
Carrier Bearing Drop: CS-CARRIERDROP-F

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Required and Optional Parts to support this system: Sway Bar Options (REQUIRED): CS-FTSB-45-11 or CS-FSBD-11 Radius Arms: CS-FARA-45-05 Leaf Spring Options (REQUIRED): CS-FFSP-11 or CS-FPAP-11 Leaf Spring Shackle: CS-FSHACKLE-11 Long Travel Bags: CS-FLTB-08 Steering Stabilizer - High mount: CS-FHMSS-08 Steering Stabilizer - Low mount: CS-FLMSS-05 Carrier Bearing Drop: CS-CARRIERDROP-F
UPC	883584146216
ProxyNumber	14621
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	251.0000 lb
