CS-F45-CO25-BYP-11

Carli Tuned 2.5 Coilover/Bypass Package, 4.5” Lift, 2011-16 Ford F250/F350, 4x4

Product Details

Providing height adjustability, dual front shocks and ultimate bottom-out resistance, the Coilover Bypass kit is the best option for the avid off-roader while still maintaining great on-road manners.

This system boasts King 2.5 Coilovers next to a King 2-Tube 2.5 piggyback bypass for maximum offroad capability and tunability and looks lkiller in the process.
The Coilover Bypass system is perfect for anyone looking for the ability to adjust front height to compensate for added weight and the ability to fine tune their shocks.

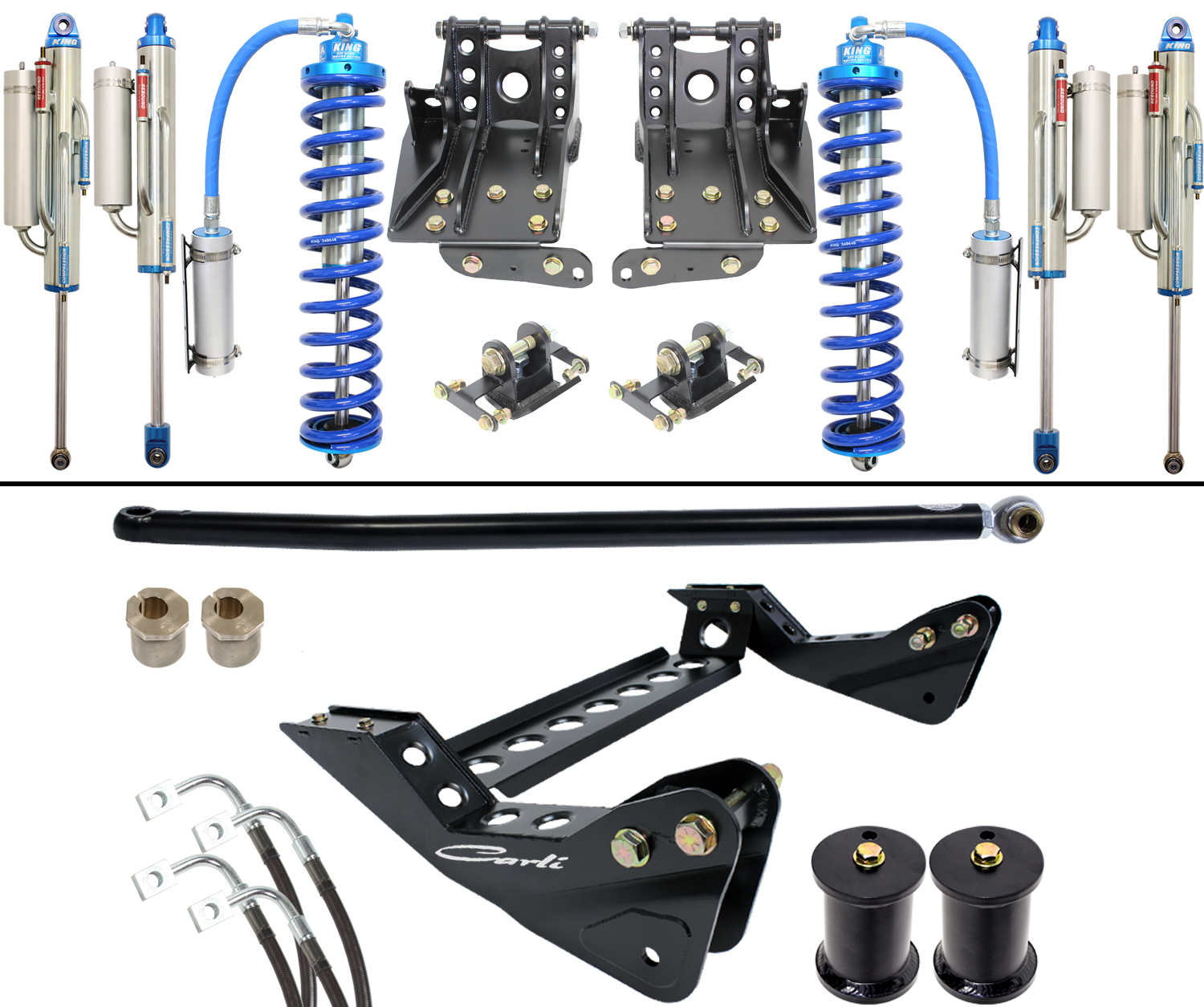

System includes front and rear shock package, coilover mount kit, brake line kit, radius arm drop brackets bump stop drops, caster correction shims and adjustable track bar.
Increases wheel travel to 10" front and 13" rear.
Requires but does not include rear leaf spring option and sway bar option.

Technical Notes

Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-FTSB-45-11 or CS-FSBD-11
Radius Arms: CS-FARA-45-05
Leaf Spring Options (REQUIRED): CS-FFSP-11 or CS-FPAP-11
Leaf Spring Shackle: CS-FSHACKLE-11
Long Travel Bags: CS-FLTB-08
Steering Stabilizer - High mount: CS-FHMSS-08
Steering Stabilizer - Low mount: CS-FLMSS-05
Carrier Bearing Drop: CS-CARRIERDROP-F

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Required and Optional Parts to support this system: Sway Bar Options (REQUIRED): CS-FTSB-45-11 or CS-FSBD-11 Radius Arms: CS-FARA-45-05 Leaf Spring Options (REQUIRED): CS-FFSP-11 or CS-FPAP-11 Leaf Spring Shackle: CS-FSHACKLE-11 Long Travel Bags: CS-FLTB-08 Steering Stabilizer - High mount: CS-FHMSS-08 Steering Stabilizer - Low mount: CS-FLMSS-05 Carrier Bearing Drop: CS-CARRIERDROP-F
UPC	883584146087
ProxyNumber	14608
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	234.0000 lb
