CS-F45-UC30-05

Carli Unchained 3.0 Bypass System, Base, 4.5” Lift, 2005-07 Ford F250/F350

Product Details

The Unchanied Kit pulls out all the stops. This system provides uncompromised offroad ability with a civil on-road ride resulting in a truck that’s a blast to drive in all environments.

Featuring HUGE King remote reservoir 3.0" 2-tube bypasss front 3.0 4-tube bypass rear shocks, this system is ready to soak up high speed hits

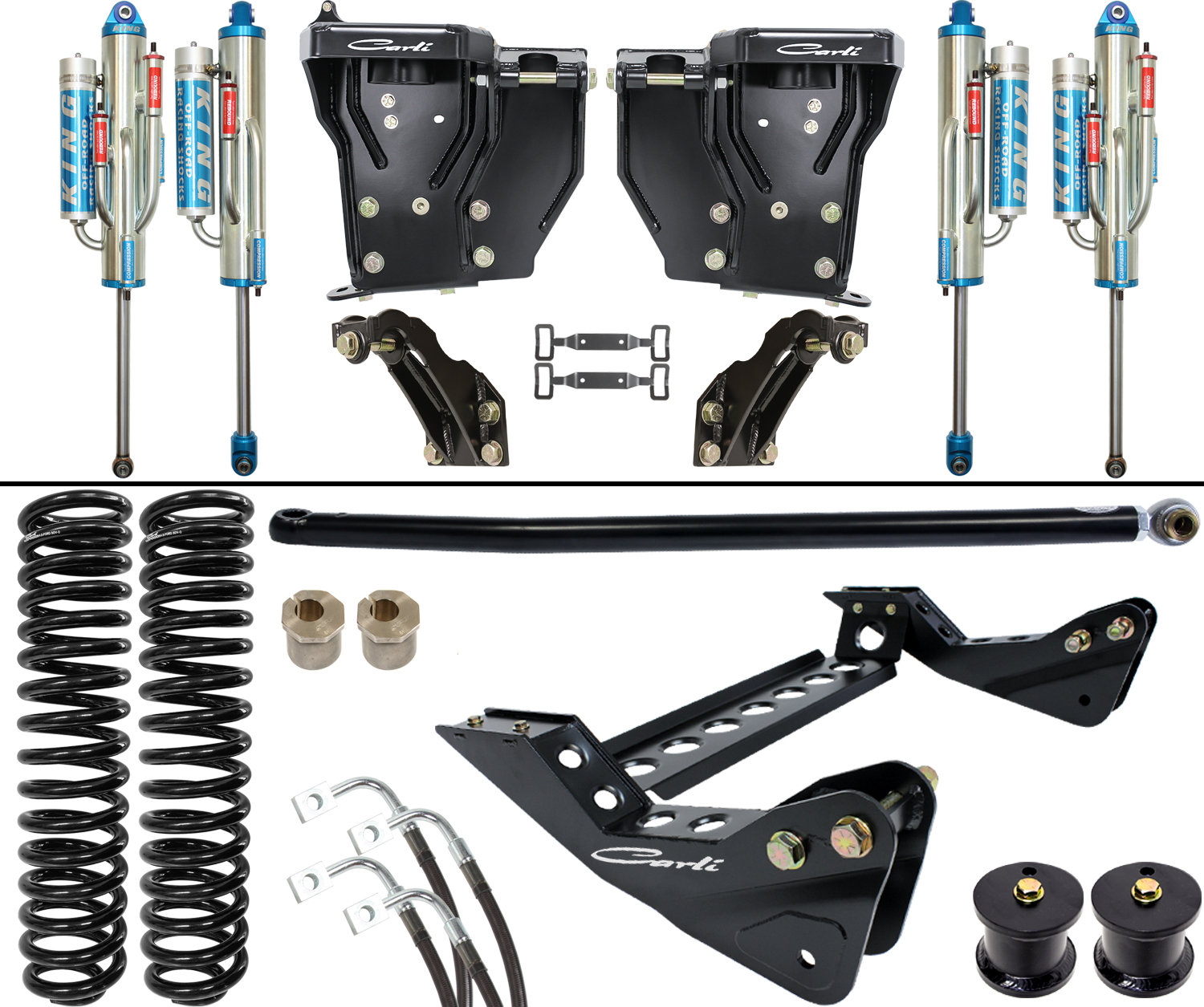

System includes front and rear shock package, fabricated coil buckets, brake line kit, rear shock mounts, radius arm drop brackets bump stop drops, caster correction shims and adjustable track bar.
Increases wheel travel to 10.5" front and 13" rear.
Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
Requires but does not include rear leaf spring option and sway bar option.

Technical Notes

Required and Optional Parts to support this system:
Radius Arms: CS-FARA-LVL-05
Leaf Spring Options (REQUIRED): CS-FPAP-05 or CS-FFSP-LVL-05 or CS-FFSP-LVL-05-HD
Steering Stabilizer - Low mount: CS-FLMSS-05

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Required and Optional Parts to support this system: Radius Arms: CS-FARA-LVL-05 Leaf Spring Options (REQUIRED): CS-FPAP-05 or CS-FFSP-LVL-05 or CS-FFSP-LVL-05-HD Steering Stabilizer - Low mount: CS-FLMSS-05
UPC	883584151401
ProxyNumber	15140
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	320.0000 lb
