CS-F55-D30-23

Carli Dominator 3.0 System, 4.5/5.5″ Lift, 2203+ Ford F250/F350, Diesel, 4x4

Product Details

Carli Dominator: The ultimate no compromise, utilitarian suspension system. Carli King 3.0” shocks, custom-tuned and ready for any obstacles. This system can handle the toughest of terrain while still getting you around town in comfort.

The Carli Dominator system utilizes Carli-tuned King 3.0 shocks that provide fantastic on-road ride and superior off road performance
133/240

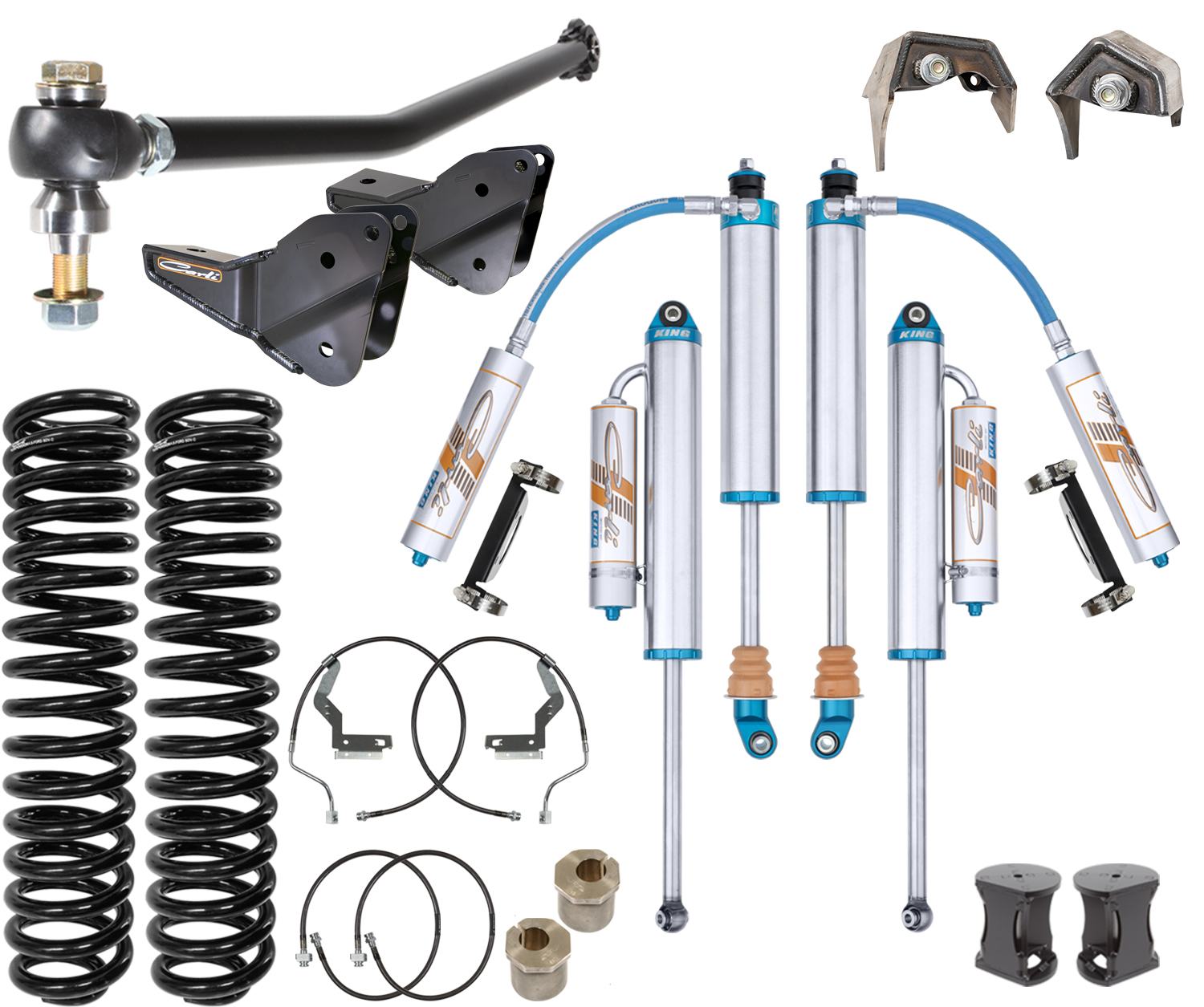

System includes front and rear shock package, fabricated coil buckets, brake line kit, rear shock mounts, radius arm drop brackets bump stop drops, caster correction shims and adjustable track bar.
197/240
Increases wheel travel to 10.5" front and 13.8" rear.
53/240
Requires but does not include rear leaf spring option and sway bar option.
74/240
Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.

Technical Notes

Required and Optional Parts to support this system:
Trophy Hitch: CS-FHITCH-1723
Sway Bar Options (REQUIRED): CS-FELKIT-45-17 or CS-FTSB-45-17
Radius Arms: CS-FARA-55-23
Leaf Spring Options (REQUIRED): CS-FFSP-17 or CS-FPAP-45-17
Leaf Spring Shackle: CS-FSHACKLE-11
Long Travel Bags: CS-FLTB-17-35 or CS-FLTB-17-40 or CS-FLTB-17-45
Steering Stabilizer - High mount: CS-FHMSS-17
Steering Stabilizer - Low mount: CS-FLMSS-05
Carrier Bearing Drop: CS-CARRIERDROP-F

Warranty Information

Warranty information unavailable

Compatible Make / Model

Ford F-250 Super Duty (2023-2024)

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Required and Optional Parts to support this system: Trophy Hitch: CS-FHITCH-1723 Sway Bar Options (REQUIRED): CS-FELKIT-45-17 or CS-FTSB-45-17 Radius Arms: CS-FARA-55-23 Leaf Spring Options (REQUIRED): CS-FFSP-17 or CS-FPAP-45-17 Leaf Spring Shackle: CS-FSHACKLE-11 Long Travel Bags: CS-FLTB-17-35 or CS-FLTB-17-40 or CS-FLTB-17-45 Steering Stabilizer - High mount: CS-FHMSS-17 Steering Stabilizer - Low mount: CS-FLMSS-05 Carrier Bearing Drop: CS-CARRIERDROP-F
UPC	883584157250
ProxyNumber	15725
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	243.0000 lb
