CS-F55-EV25-23

CARLI 23+ FORD F250/350 4X4 DIESEL 5.5" LIFT EVENTURE SYSTEM

Product Details

Elevate your Ford's performance to new heights with the Carli E-venture System: The absolute BEST performance in any situation, this system reads and reacts to the terrain 250 times PER SECOND to ensure the best ride possible.

Select from Mountain, Street, and Desert mode to choose the best setting for any terrain. Each setting has been EXTENSIVELY refined and can be activated instantaneously with the push of a button.
Pro Mode allows users to adjust the Pitch, Roll, Brake, Throttle and Steering Response. Don’t worry, if your curiosity gets ahead of you or you failed to track your changes, we’ve implemented a “Restore Default” setting.
Rear Load Adjustment feature gives the user control over the rear dampers. When loaded, the rear can be adjusted to balance comfort and support OR max the rear support to prioritize load support.

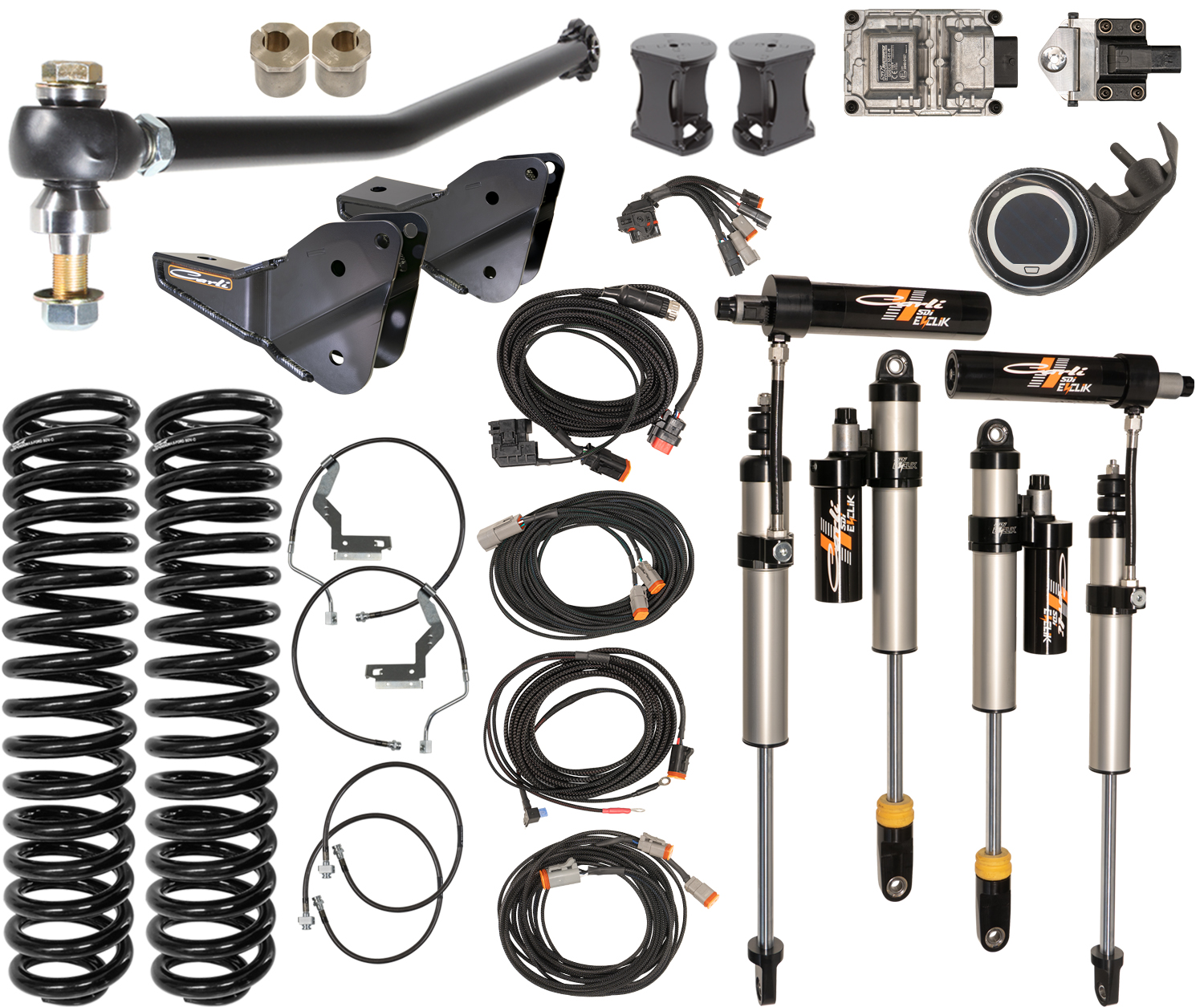

System includes front and rear shock package, fabricated coil buckets, brake line kit, rear shock mounts, radius arm drop brackets bump stop drops, caster correction shims and adjustable track bar.
Increases wheel travel to 10.25" front and 13.0" rear.

Technical Notes

Required and Optional Parts to support this system:
2 deg Pinion Shim: CS-FPSKIT-3X2
Trophy Hitch: CS-FHITCH-1723
Sway Bar Options (REQUIRED): CS-FELKIT-45-17 or CS-FTSB-45-17
Radius Arms: CS-FARA-55-23
Leaf Spring Options (REQUIRED): CS-FFSP-17 or CS-FPAP-45-17
Leaf Spring Shackle: CS-FSHACKLE-13
Long Travel Bags: CS-FLTB-23-35 or CS-FLTB-23-40 or CS-FLTB-23-45
Steering Stabilizer - High mount: CS-FHMSS-17
Steering Stabilizer - Low mount: CS-FLMSS-23
Carrier Bearing Drop: CS-CARRIERDROP-F

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Technical Notes	Required and Optional Parts to support this system: 2 deg Pinion Shim: CS-FPSKIT-3X2 Trophy Hitch: CS-FHITCH-1723 Sway Bar Options (REQUIRED): CS-FELKIT-45-17 or CS-FTSB-45-17 Radius Arms: CS-FARA-55-23 Leaf Spring Options (REQUIRED): CS-FFSP-17 or CS-FPAP-45-17 Leaf Spring Shackle: CS-FSHACKLE-13 Long Travel Bags: CS-FLTB-23-35 or CS-FLTB-23-40 or CS-FLTB-23-45 Steering Stabilizer - High mount: CS-FHMSS-17 Steering Stabilizer - Low mount: CS-FLMSS-23 Carrier Bearing Drop: CS-CARRIERDROP-F
UPC	883584154747
ProxyNumber	15474
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	212.0000 lb
