CS-FLVL-BC-CS-17

Carli Backcountry Leveling Suspension, 2.5/3.5” Lift, 2017-22 Ford F250/F350

Product Details

Carli’s Backcountry 2.0 system delivers a keen balance of on-road stability and mild off-road ability for a reasonable price. The base system touches all critical components, addressing wheel travel, proper geometry, smoothness, and durability while delivering an aggressive level stance. The kit is based on Carli-Spec 2.0-inch diameter remote reservoir shocks. Carli engineers developed a valving tune that addresses on-road, in-town, highway driving, towing and/or hauling, as well as slow- to medium-speed off-road use. The shocks boast 6063 aluminum construction, fully anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shock shaft, a fully serviceable/rebuildable design, and 6061-billet rod-ends with one-piece bushings. This suspension transforms your truck into a rig that is smoother than stock on the highway but has the moxie to tackle mild trail running and off-roading with ease.

Features Carli-Tuned remote reservoir 2.0 shocks which provide a more comfortable on-road feel and better offr-road performance. Corrosion resistant aluminum bodies provide long-lasting finish.

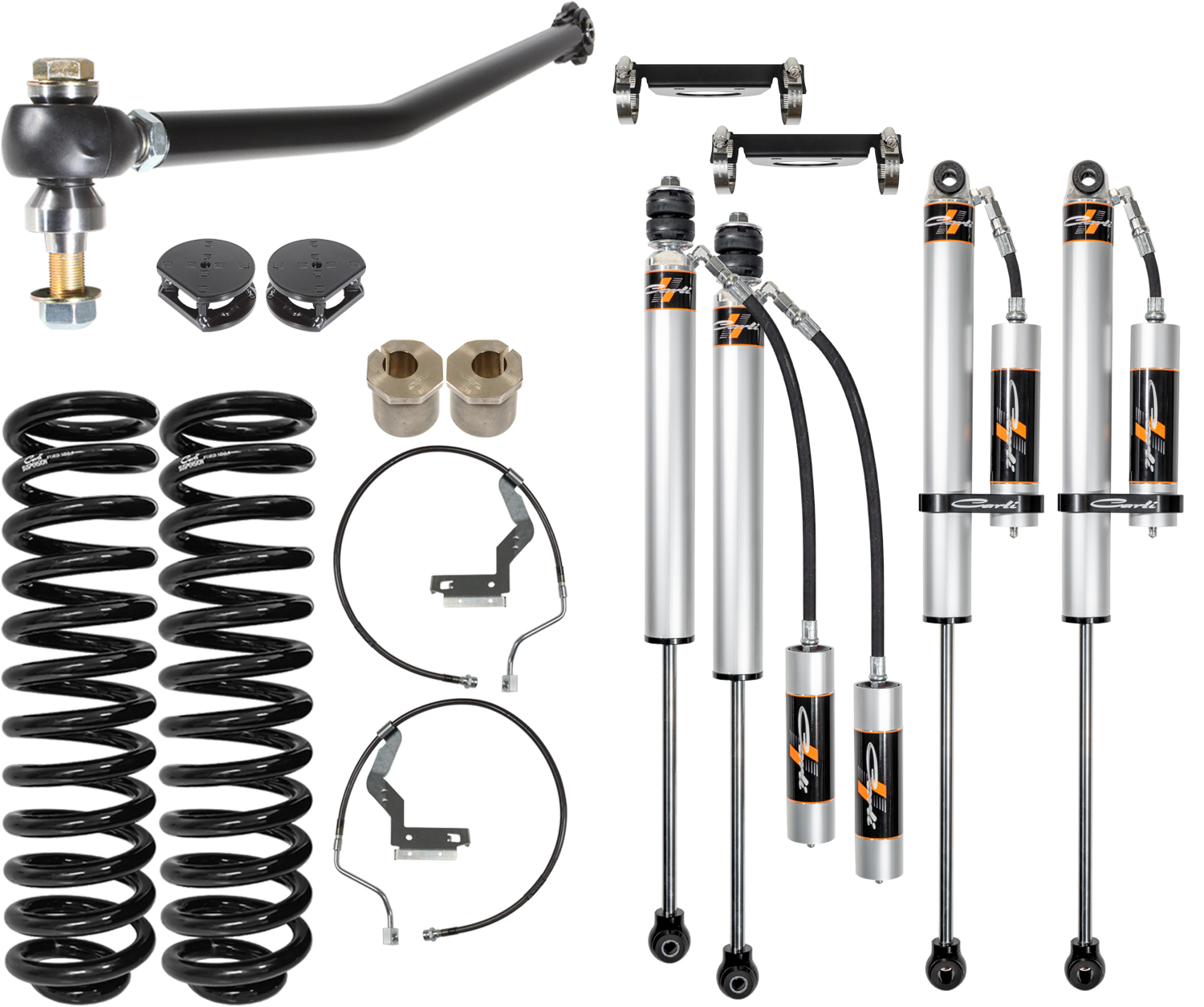

System includes linear rate coil springs, front and rear shock package, brake line kit, bump stop drops, caster correction shims and adjustable track bar.
Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
Increases wheel travel to 9" front and 13.8" rear.

Technical Notes

Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 or CS-FEL-LVL-17 or CS-FTSB-LVL-17
Radius Arms: CS-FARA-LVL-05
Leaf Spring Options (REQUIRED): CS-FPAP-LVL-17 or CS-FFSP-LVL-17 or CS-FFSP-LVL-17-HD
Leaf Spring Shackle: CS-FSHACKLE-11
Steering Stabilizer - High mount: CS-FHMSS-17
Steering Stabilizer - Low mount: CS-FLMSS-05
Trophy Hitch: CS-FHITCH-1723

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Required and Optional Parts to support this system: Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 or CS-FEL-LVL-17 or CS-FTSB-LVL-17 Radius Arms: CS-FARA-LVL-05 Leaf Spring Options (REQUIRED): CS-FPAP-LVL-17 or CS-FFSP-LVL-17 or CS-FFSP-LVL-17-HD Leaf Spring Shackle: CS-FSHACKLE-11 Steering Stabilizer - High mount: CS-FHMSS-17 Steering Stabilizer - Low mount: CS-FLMSS-05 Trophy Hitch: CS-FHITCH-1723
UPC	883584138266
ProxyNumber	13826
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	137.0000 lb
