CS-FLVL-PT25-17

Carli Pintop Leveling System, Base, 2.5/3.5” Lift, 2017-22 Ford F250/350, Diesel

Product Details

The Carli Pintop is a Jack-of-all-trades system that delivers a sedate yet confident on-road ride with all the harsh edges rounded and smoothed while making light- to medium-duty off-road escapades completely controlled and uneventful. The system features Carli-specific, blueprinted, King 2.5” shocks on all four corners. With a 2.5” diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0” shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

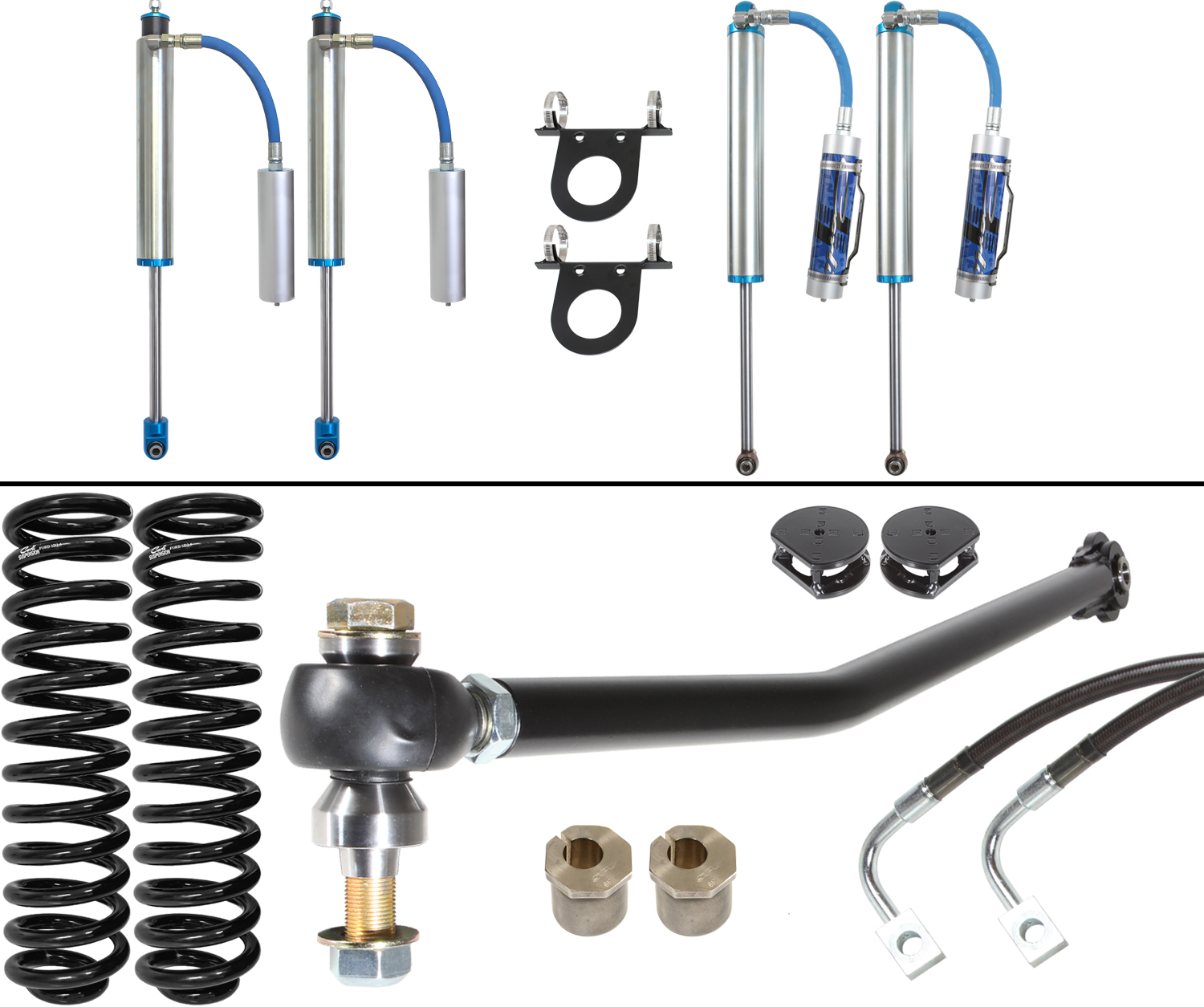

System includes front and rear shock package, linear rate coil springs, brake line kit, bump stop drops, caster correction shims and adjustable track bar.
Increases wheel travel to 9" front and 13" rear.
Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
Requires but does not include sway bar option.

Technical Notes

Required and Optional Parts to support this system:
Trophy Hitch: CS-FHITCH-1723
Sway Bar Options (REQUIRED): CS-FELKIT-45-17 or CS-FTSB-45-17
Radius Arms: CS-FARA-45-05
Leaf Spring Options (REQUIRED): CS-FFSP-17 or CS-FPAP-45-17
Leaf Spring Shackle: CS-FSHACKLE-11
Long Travel Bags: CS-FLTB-17-35 or CS-FLTB-17-40 or CS-FLTB-17-45
Steering Stabilizer - High mount: CS-FHMSS-17
Steering Stabilizer - Low mount: CS-FLMSS-05
Carrier Bearing Drop: CS-CARRIERDROP-F

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Required and Optional Parts to support this system: Trophy Hitch: CS-FHITCH-1723 Sway Bar Options (REQUIRED): CS-FELKIT-45-17 or CS-FTSB-45-17 Radius Arms: CS-FARA-45-05 Leaf Spring Options (REQUIRED): CS-FFSP-17 or CS-FPAP-45-17 Leaf Spring Shackle: CS-FSHACKLE-11 Long Travel Bags: CS-FLTB-17-35 or CS-FLTB-17-40 or CS-FLTB-17-45 Steering Stabilizer - High mount: CS-FHMSS-17 Steering Stabilizer - Low mount: CS-FLMSS-05 Carrier Bearing Drop: CS-CARRIERDROP-F
UPC	883584136002
ProxyNumber	13600
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	168.0000 lb
