CS-FLVL-SIG-23

Carli Signature Leveling System, Base, 3.5” Lift, 2023+ Ford F250/F350, Diesel

Product Details

The Carli Signature Leveling System is the entry level kit designed for the customer who wants to improve their ride and have the option to upgrade over time.

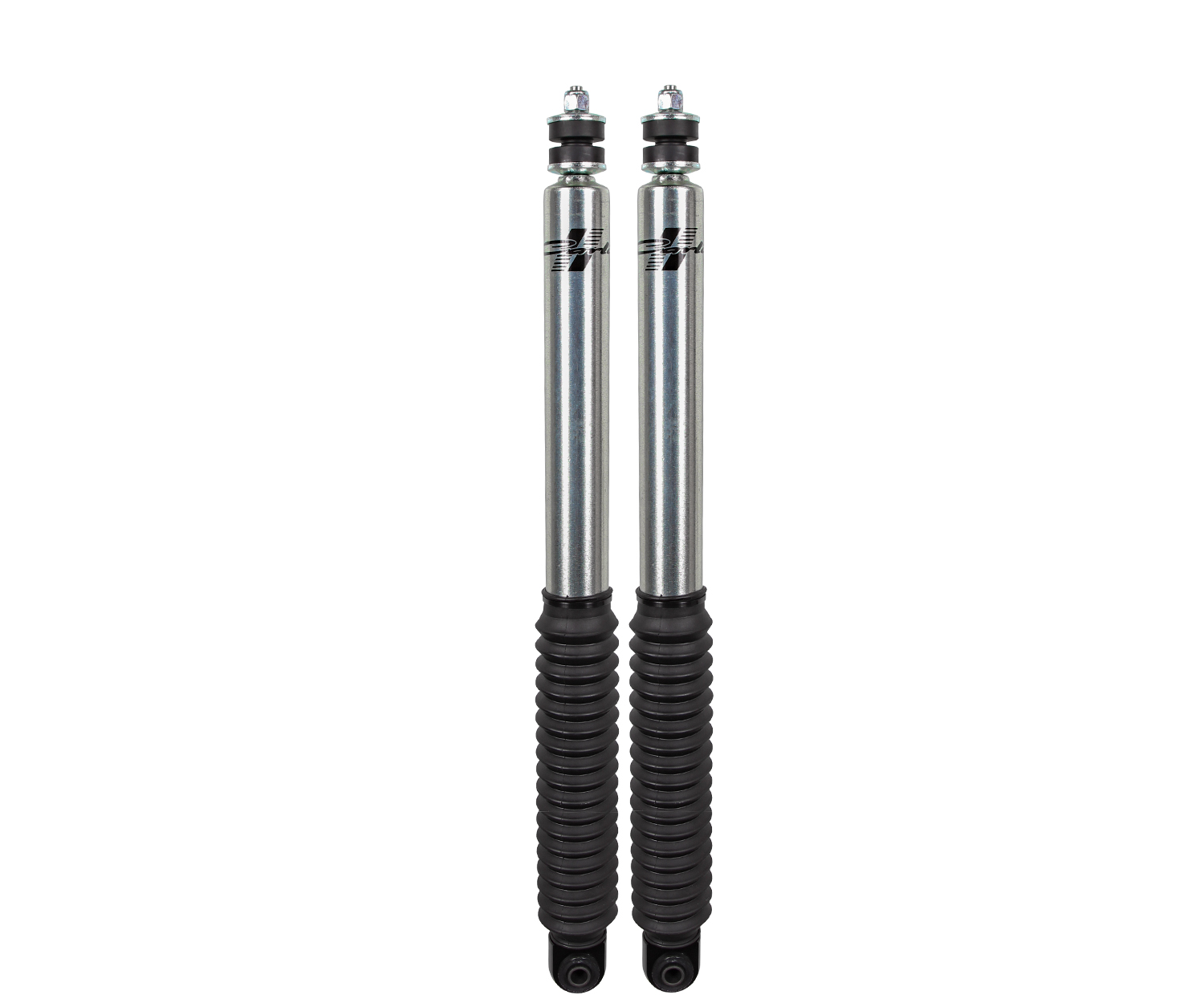

Carli Signature Series Shocks are Carli tuned and corrosion resistant to provide a durable and comfortable ride.

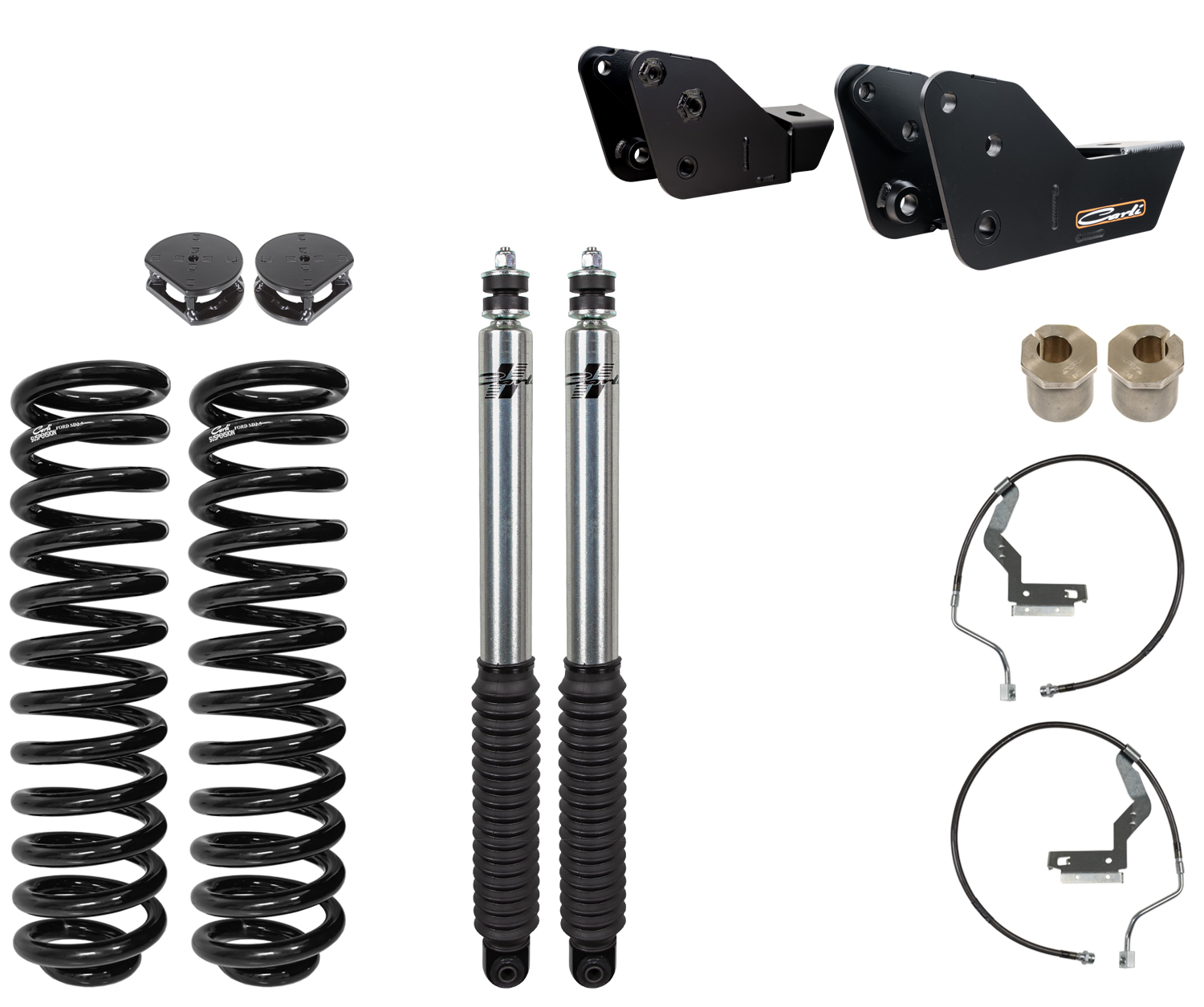

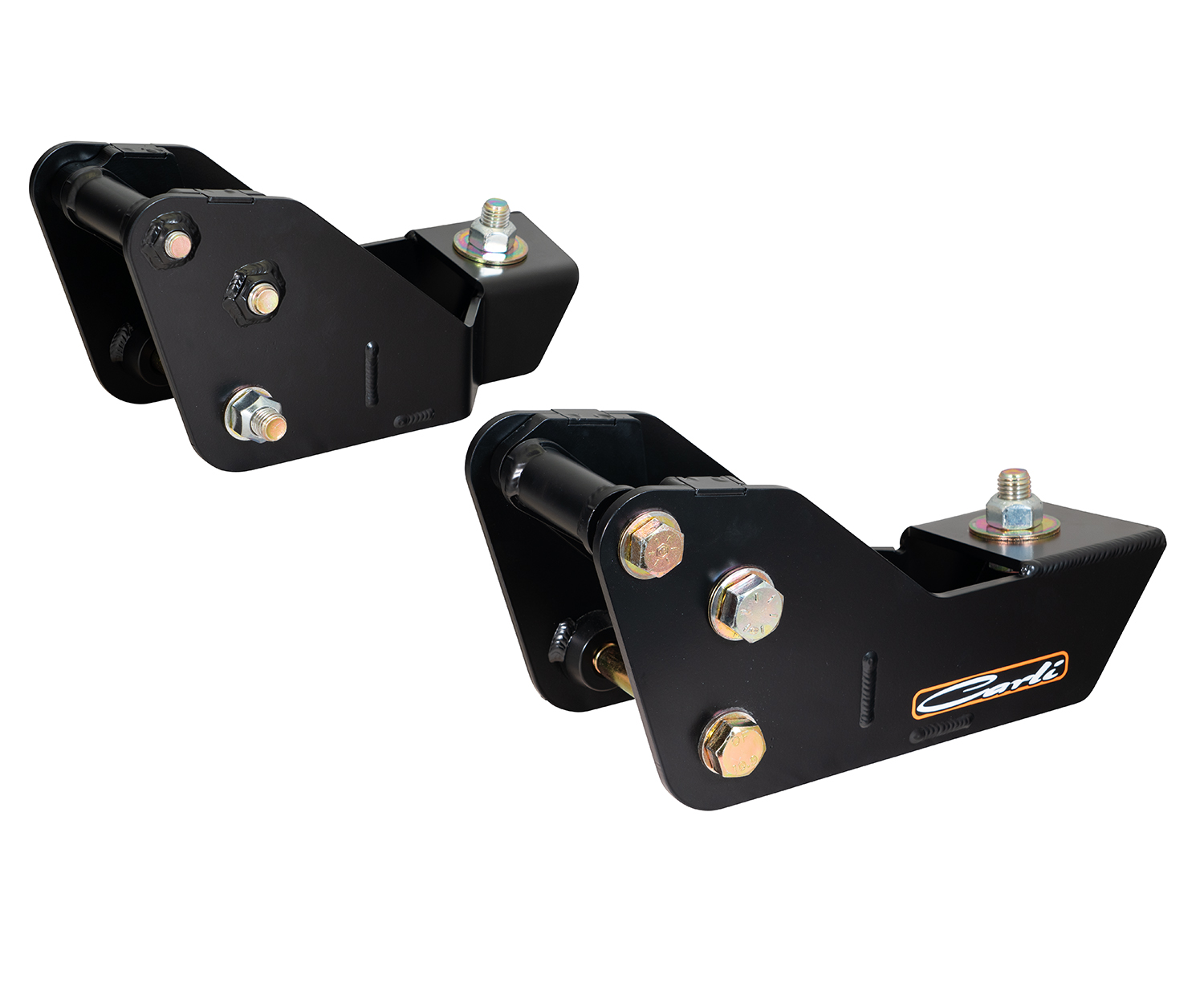

System includes front and rear shock package, radius arm drops, linear rate coil springs, brake line kit, bump drops, and caster correction shims.
Carli Signature Series shocks carry a limited lifetime warranty so you can upgrade without worry.
Increases wheel travel to 9" front and 13" rear.

Technical Notes

Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 or CS-FEL-LVL-17 or CS-FTSB-LVL-17
Radius Arms: CS-FARA-LVL-23
Leaf Spring Options (REQUIRED): CS-FPAP-LVL-17 or CS-FFSP-LVL-17 or CS-FFSP-LVL-17-HD
Leaf Spring Shackle: CS-FSHACKLE-11
Steering Stabilizer - High mount: CS-FHMSS-17
Steering Stabilizer - Low mount: CS-FLMSS-23
Trophy Hitch: CS-FHITCH-1723

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Required and Optional Parts to support this system: Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 or CS-FEL-LVL-17 or CS-FTSB-LVL-17 Radius Arms: CS-FARA-LVL-23 Leaf Spring Options (REQUIRED): CS-FPAP-LVL-17 or CS-FFSP-LVL-17 or CS-FFSP-LVL-17-HD Leaf Spring Shackle: CS-FSHACKLE-11 Steering Stabilizer - High mount: CS-FHMSS-17 Steering Stabilizer - Low mount: CS-FLMSS-23 Trophy Hitch: CS-FHITCH-1723
UPC	883584167143
ProxyNumber	16714
Maximum Lift	3.5
Spring Color	Black
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	124.0000 lb
