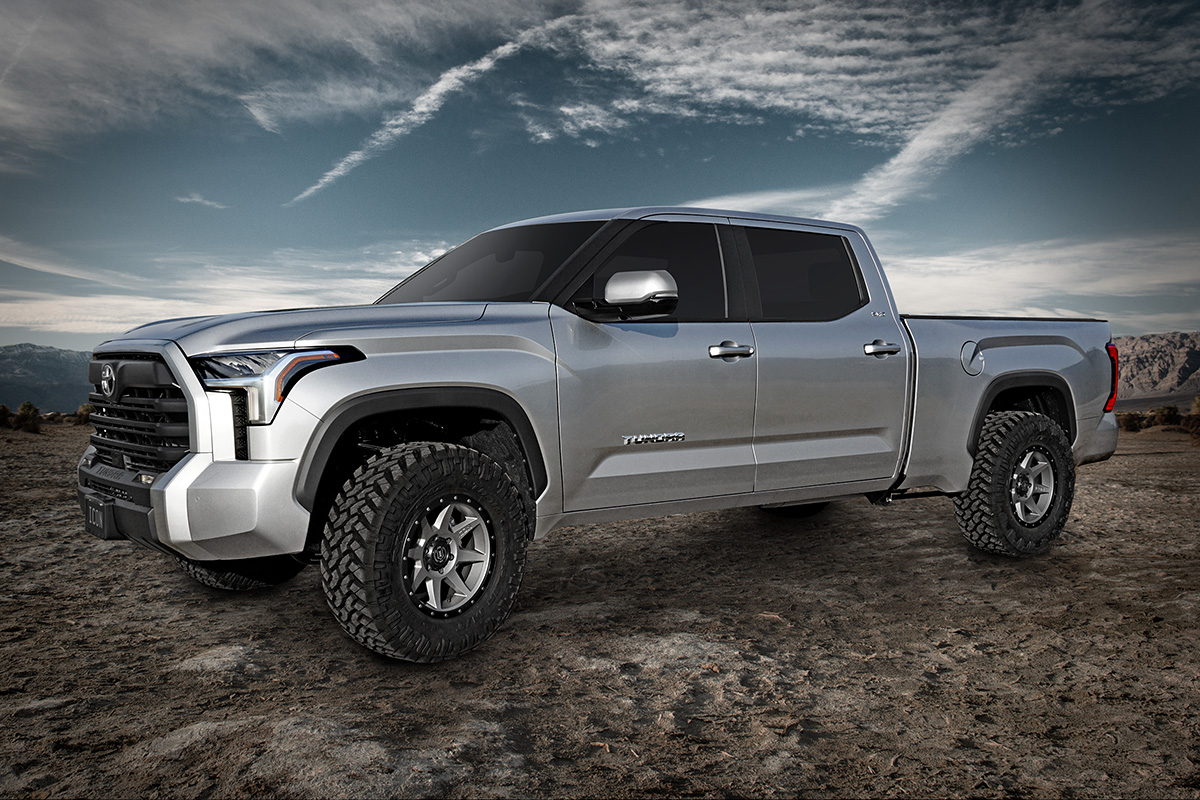

ICON Alloys 2022-2024 Toyota Tundra/2023-2024 Toyota Sequoia, 2.25" Lift, Front, Coilover Spacer Kit

Product Details

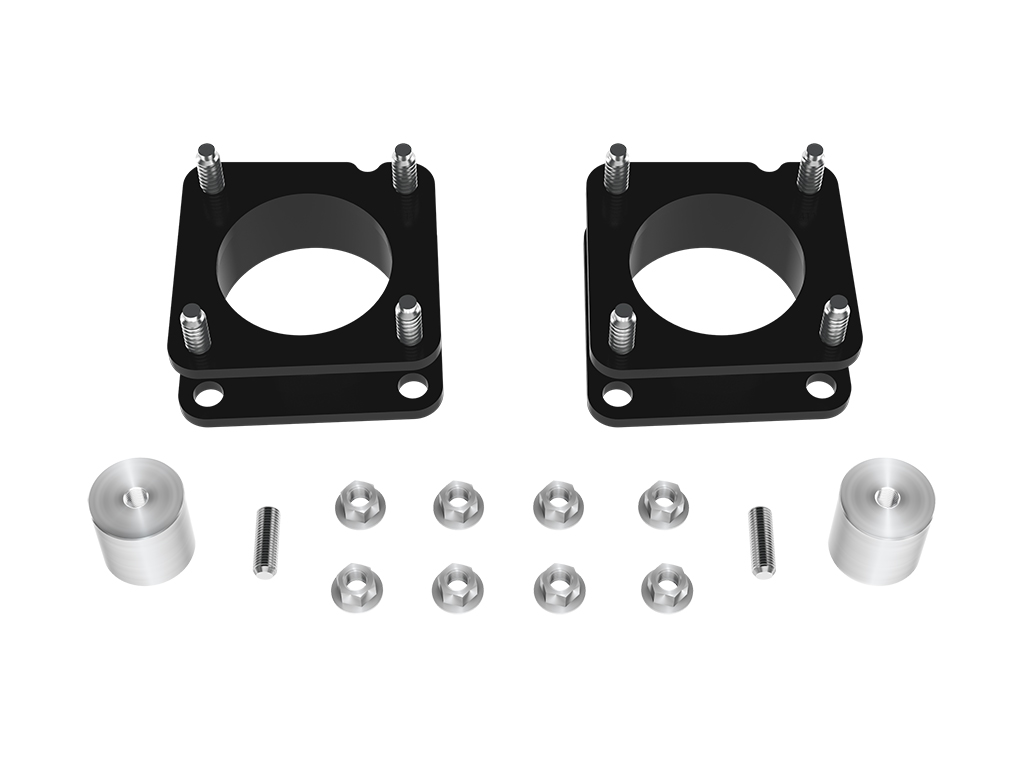

This leveling kit for the 2022-2024 Toyota Tundra and 2023-2024 Toyota Sequoia is perfect for the budget-minded customer looking to raise the front of their truck to provide clearance for larger/more aggressive wheel and tire combinations without breaking the bank. ICON's 2022-2024 Toyota Tundra/2023-2024 Toyota Sequoia Leveling Kit utilizes a vehicle specific design formulated to work with existing factory components and does not require disassembly of the front coilover for installation. The included bump stop spacers ensure the suspension never over compresses and the overall design keep ball joints and tie rods from binding, preventing damage from off-road use possible with other top load leveling spacers. It is finished with black powder coat for added corrosion resistance and offers a clean, sleek look.

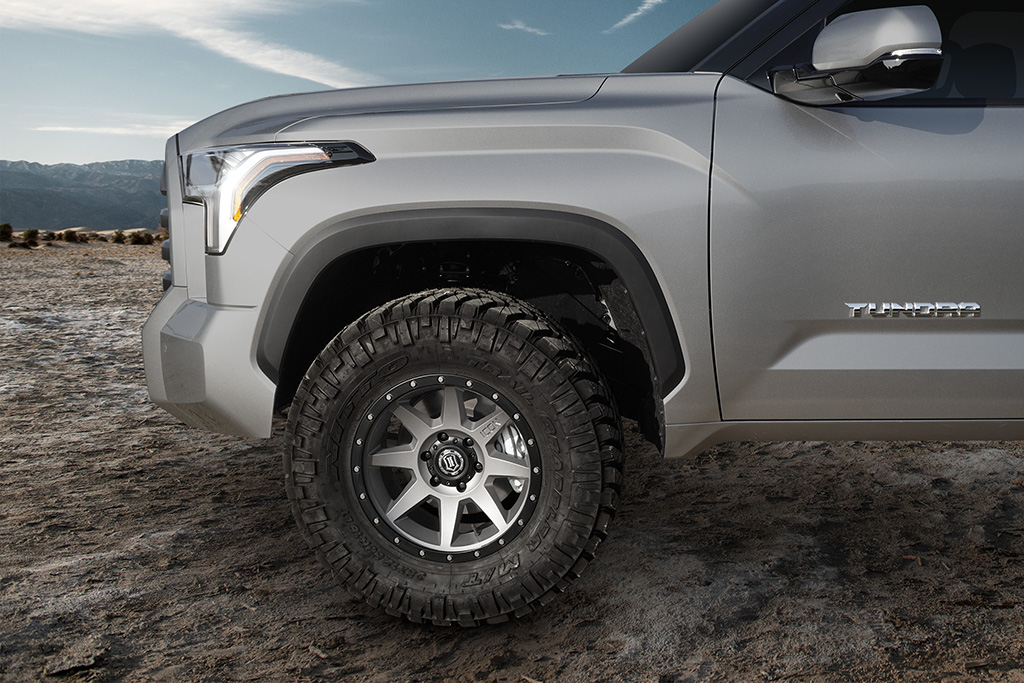

2.25" increased ride front height
Does not require disassembly of the shock for installation
Vehicle specific design
Black powder coat finish
Bump stop spacer to keep shock from bottoming out
Designed to keep ball joints and tie rods from binding

Technical Notes

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset
Recommended Aftermarket Wheels: 18x9" w/ 6.00" Backspace / 25mm Offset
Recommended Aftermarket Wheels: 20x9" w/ 6.00" Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension
APPLICATION NOTE #149: For 4WD models without TRD Off-Road Package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage.
TECH NOTE: Will not fit TRD Pro
TECH NOTE: Will not fit vehicles equipped with Toyota Rear Height Control Air Suspension

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Alloys
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset Recommended Aftermarket Wheels: 18x9" w/ 6.00" Backspace / 25mm Offset Recommended Aftermarket Wheels: 20x9" w/ 6.00" Backspace / 25mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension APPLICATION NOTE #149: For 4WD models without TRD Off-Road Package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. TECH NOTE: Will not fit TRD Pro TECH NOTE: Will not fit vehicles equipped with Toyota Rear Height Control Air Suspension
UPC	00840103414201
Maximum Lift	2.25
Bracket Material	Steel
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	20x9" w/ 6.00" Backspace / 25mm Offset
Width	7.00 in
Length	14.00 in
Depth	4.00 in
Weight	15.0000 lb
