JT30-1X5310-L5

Dynatrac 2020-Up Jeep Gladiator JT, Suspension Lift System 5

Product Details

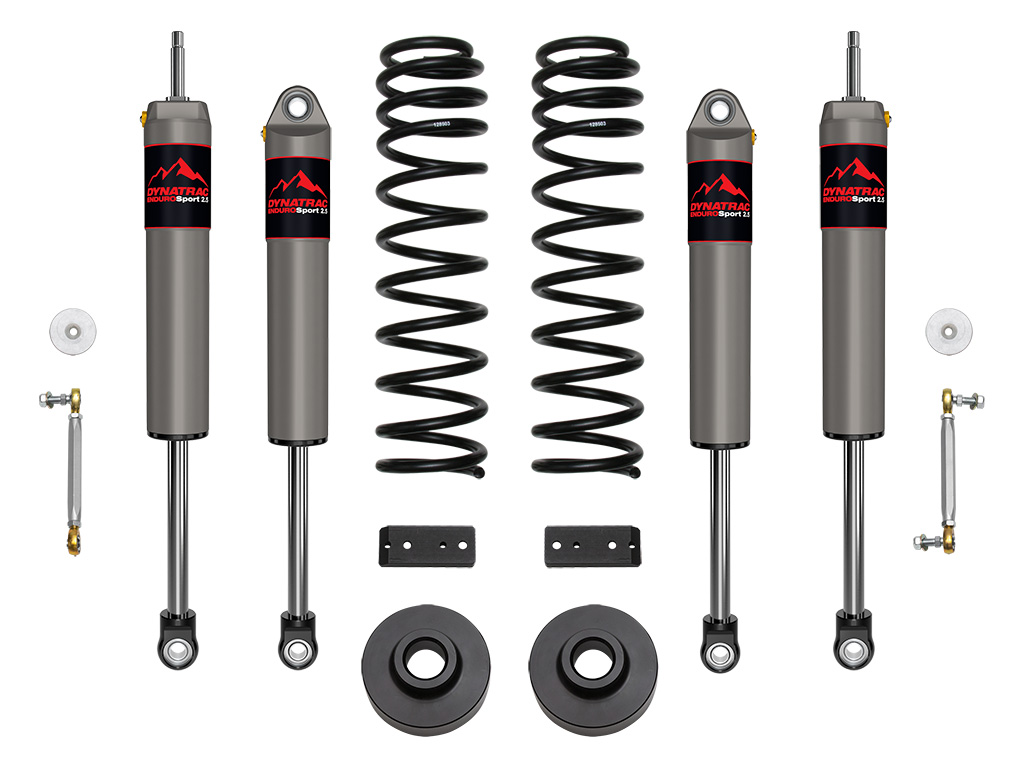

The Dynatrac 3" Suspension Lift System 5 for the 2020-Up Jeep Gladiator JT is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. System 5 builds off of System 1 with upgraded 2.5 EnduroSport shocks for improved shock damping and heat dissipation. This system includes 3" lift front dual rate coil springs, 1.38” lift billet aluminum rear coil spacers, 2.5 EnduroSport shocks, bump stop spacers, adjustable front sway bar links and rear brackets, and all necessary hardware to complete the installation. With this combination of components, Dynatrac was able to increase wheel travel numbers by 3" in front and 2" in the rear, significantly improving the performance of the 2020-Up JT. The 3.0” Lift System allows or fitment of 35" tires when used with Dynatrac's recommended wheel specifications. For users looking to install 37" tires, an optional extended bump stop spacer kit (Part # DT922071) is available.

3" front lift height and 1.38" of rear lift over stock
Fits 35" tires (37" with optional extended bump stop spacer kit, Part # DT922071)
3" front, 2" rear increase in wheel travel
Improves on and off-road ride quality over stock
Dual rate front coil springs with lifetime guarantee against sagging/breakage
2.5 EnduroSport shocks with Jeep JT specific valving offer greater shock damping and performance
Adjustable front sway bar links and rear sway bar brackets eliminate sway bar bind
100% bolt-on system makes for an easy install
Tested under rigorous off-road conditions to validate tune, performance, strength, and durability

Technical Notes

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922071)
TECH NOTE: Dynatrac's advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
TECH NOTE: Springs are NOT rated for use with models equipped with EcoDiesel engines.
TECH NOTE: Jeep Gladiator Mojave also requires heim spacer kit, part # DT9611070

Warranty Information

Warranty information unavailable

Compatible Make / Model

Jeep Gladiator (2020-2024)

Specification

Brand	Dynatrac
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922071) TECH NOTE: Dynatrac's advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle. TECH NOTE: Springs are NOT rated for use with models equipped with EcoDiesel engines. TECH NOTE: Jeep Gladiator Mojave also requires heim spacer kit, part # DT9611070
UPC	883584137061
Width	14.00 in
Length	22.00 in
Depth	8.00 in
Weight	71.0000 lb
