JT30-1X5310-L8

Dynatrac 2020-Up Jeep Gladiator JT, Suspension Lift System 8

Product Details

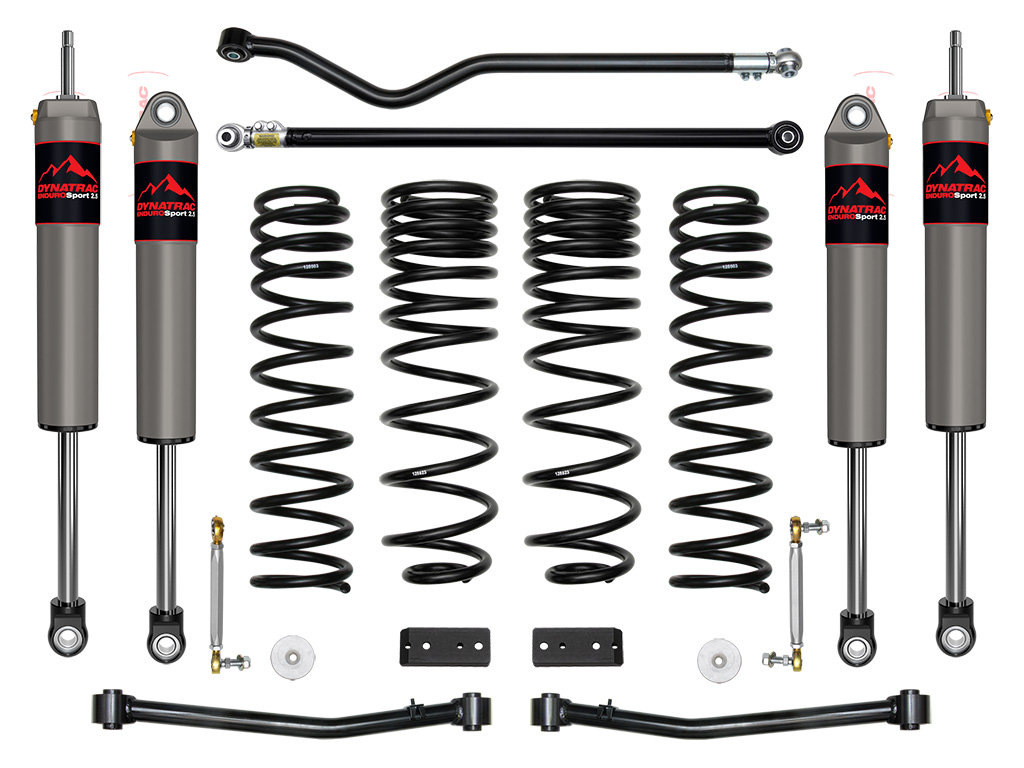

The Dynatrac 3" Suspension Lift System 8 for the 2020-Up Jeep Gladiator JT is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. System 8 builds off of System 4 with upgraded 2.5 EnduroSport shocks for improved shock damping and heat dissipation. This system includes 3" lift front dual rate coil springs, 1.5" lift triple rate rear coil springs, 2.5 EnduroSport shocks, bump stop spacers, adjustable front sway bar links and rear brackets, and all necessary hardware to complete the installation. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. With this combination of components, Dynatrac was able to increase wheel travel numbers by 3" in front and 2" in the rear, significantly improving the performance of the 2020-Up JT. The 3.0” Lift System allows or fitment of 35" tires when used with Dynatrac's recommended wheel specifications. For users looking to install 37" tires, an optional extended bump stop spacer kit (Part # DT922071) is available.

3" front lift height and 1.5" of rear lift over stock
100% bolt-on system makes for an easy install
Tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Fits 35" tires (37" with optional extended bump stop spacer kit, Part # DT922071)
3" front, 2" rear increase in wheel travel
Improves on and off-road ride quality over stock
Dual rate front coil springs and triple rate rear coils with lifetime guarantee against sagging/breakage
2.5 EnduroSport shocks with Jeep JL specific valving offer greater shock damping and performance
Adjustable front sway bar links and rear sway bar brackets eliminate sway bar bind
Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
Adjustable track bars offer on-Jeep adjustability, improve steering response, and reduce suspension bind under articulation

Technical Notes

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922071)
TECH NOTE: Dynatrac's advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
TECH NOTE: Springs are NOT rated for use with models equipped with EcoDiesel engines.
TECH NOTE: Jeep Gladiator Mojave also requires heim spacer kit, part # DT9611070
TECH NOTE: Spanner wrench available to aid in length adjustment. Part # DT9191014.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Jeep Gladiator (2020-2024)

Specification

Brand	Dynatrac
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922071) TECH NOTE: Dynatrac's advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle. TECH NOTE: Springs are NOT rated for use with models equipped with EcoDiesel engines. TECH NOTE: Jeep Gladiator Mojave also requires heim spacer kit, part # DT9611070 TECH NOTE: Spanner wrench available to aid in length adjustment. Part # DT9191014.
UPC	883584137146
Width	14.00 in
Length	22.00 in
Depth	8.00 in
Weight	134.0000 lb
