ICON VEHICLE DYNAMICS 03-12 RAM 2500/3500 4WD 2.5" STAGE 4 SUSPENSION SYSTEM

Product Details

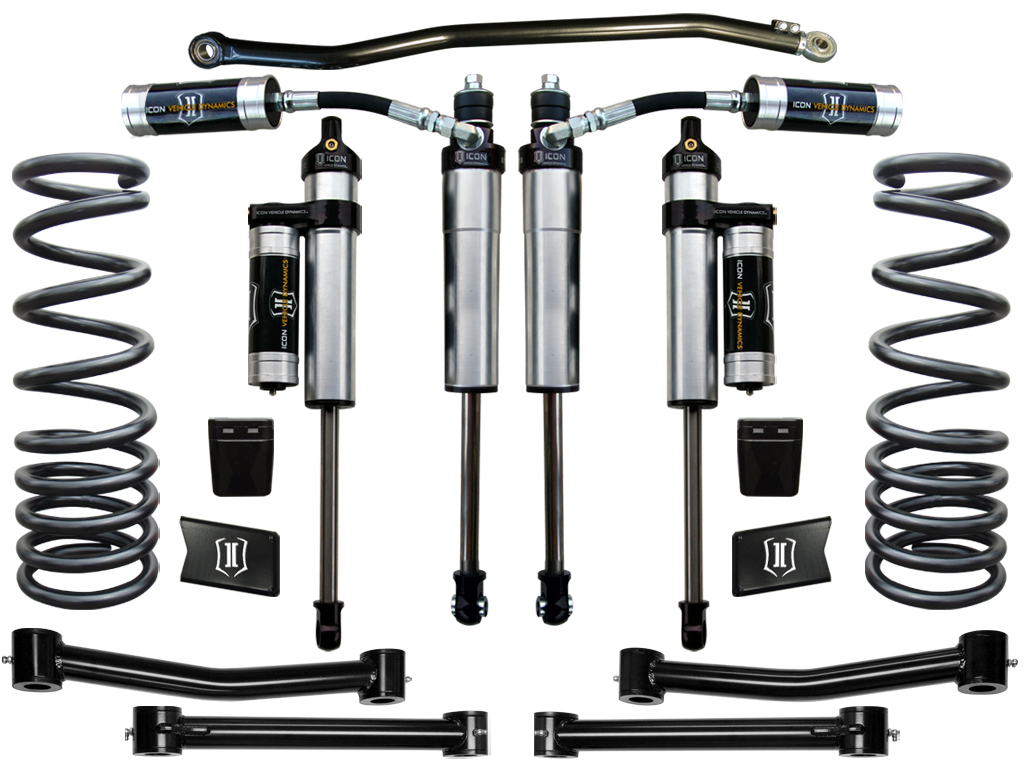

2003-2012 Ram 2500/3500 2.5" Stage 4 Suspension System is our ultimate performance kit that offers extraordinary diversity across any terrain. This system not only levels out the stance, it increases ride quality and performance substantially both on and off-road. The Stage 4 System is comprised of dual rate coil springs, polyurethane bump stops, sway bar drop brackets, 2.5" V.S. Aluminum Series shocks, bearing style adjustable track bar, and tubular steel upper & lower links. ICON 2.5" Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap & rod ends, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over the flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.

  • ICON engineered dual rate coil springs with match tuned 2.5" V.S. Aluminum Series shocks
  • 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Adjustable track bar with PTFE lined FK bearings
  • Heavy-duty steel upper and lower link bars
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Level stance front to rear
  • Less body roll than stock
  • No drive shaft modifications needed

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
  • APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • Ships in Multiple Boxes

Warranty Information

Warranty information unavailable

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
  • APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • Ships in Multiple Boxes
UPC 00840103415215
Maximum Lift 2.5
Spring Color Black
Bushings Included Yes
Add-On Part 216520 - 09-UP RAM HD STEERING STABILIZER
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
Width 19.00 in
Length 26.00 in
Depth 10.00 in
Weight 193.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2003-12 Ram 2500/3500 4WD, 2.5" Lift, Stage 4 Suspension System

K212504T

0 in stock , backorders available

$4,491.65 $3,422.20
