ICON 14-UP RAM 2500 4WD 2.5" STAGE 1 SUSPENSION SYSTEM (AIR RIDE)

ICON 2014-Up Ram 2500 4WD, 2.5" Lift, Stage 1 Suspension System, w/ OEM Air Ride

Product Details

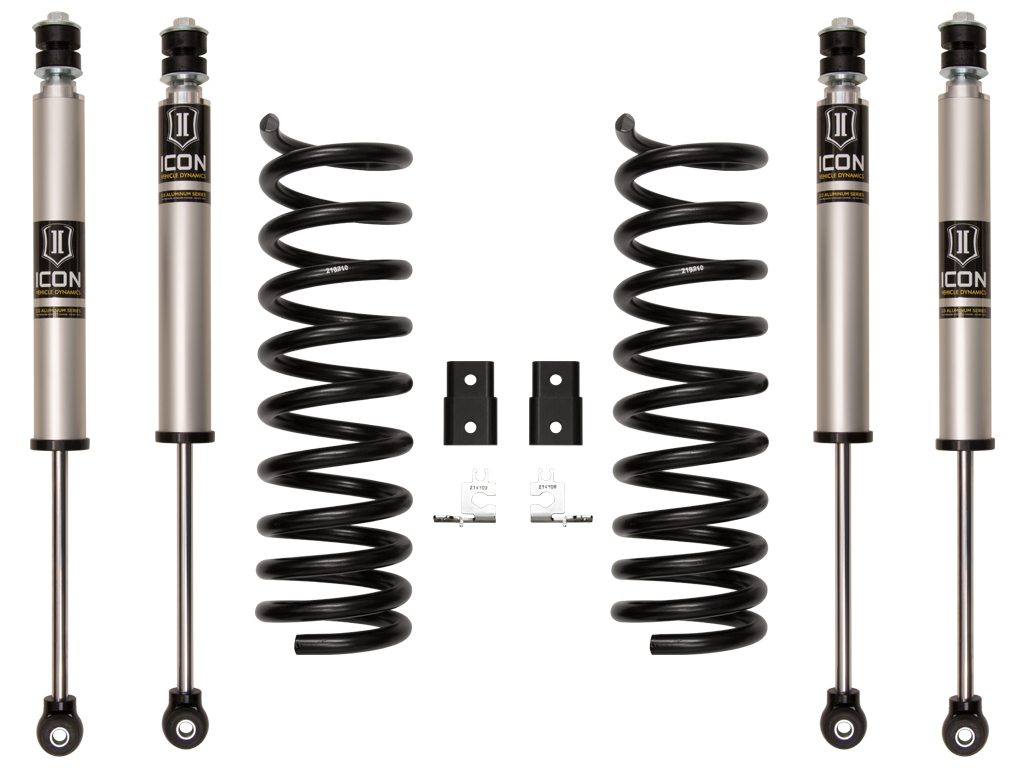

ICON's 2019 RAM 2500 4WD 2.5” Stage 1 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, as well as 2.0 Aluminum Series front and rear shocks. This entry level system improves ride quality and performance both on and off road. The ICON stage 1 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.After a thorough inspection of the RAM’s air ride assembly, ICON developed components that properly locate the airbags and associated parts so they are not over-traveled and damaged. This air ride-specific system allows for full functionality of factory air ride modes. Use of optional ICON 2" Air Ride Kit (Part #214212) allows for end-user adjustability of rear ride height from stock to 2" over stock.

ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
Increased wheel travel and ride quality over stock with no change in towing capacity
Less body roll than stock
No drive shaft modifications needed
Optional ICON 2" Air Ride Kit (Part #214212) allows for end-user adjustability of rear ride height

Technical Notes

OEM Wheels & Tires Fitment: Yes
Ships in Multiple Boxes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #90: May Not Be Compatible With Other Manufacturers Aftermarket Trackbars

Warranty Information

Warranty information unavailable

Compatible Make / Model

Ram 2500 (2014-2022)

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes Ships in Multiple Boxes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle APPLICATION NOTE #90: May Not Be Compatible With Other Manufacturers Aftermarket Trackbars
UPC	00840103415246
Maximum Lift	2.5
Spring Color	Black
Bushings Included	Yes
Add-On Part	214212 - 14-UP RAM 2500 2.0" AIR RIDE KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
Width	13.00 in
Length	31.00 in
Depth	7.00 in
Weight	68.0000 lb
