Product Details

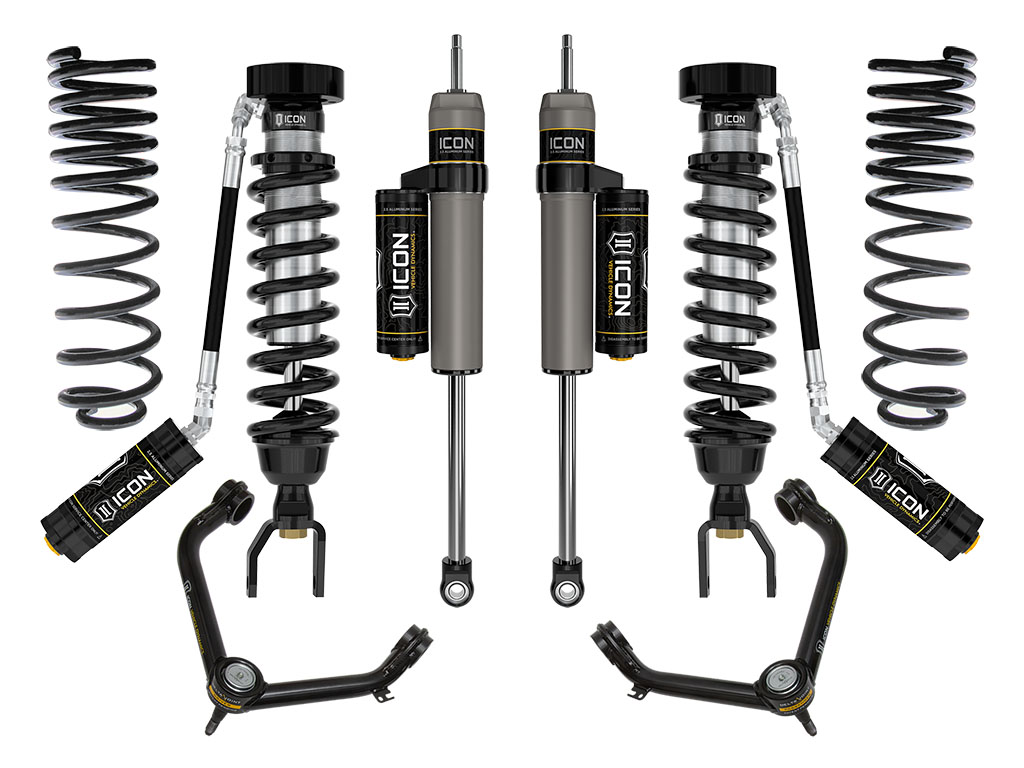

ICON Vehicle Dynamics 2019-2023 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers, are also height adjustable for 2-3” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations and their longer than stock length improves performance by increasing front wheel travel. Tubular Delta Joint upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow proper wheel alignment at the lift height this system provides. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 1.5” of rear lift height over stock allows a for level stance front to rear. ICON 2.5 Aluminum Series piggybackl reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 Ram 1500 Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable remote reservoir coilovers yield 2-3" of front lift height over stock
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and performance
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Tubular Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range
• 2.5 Aluminum Series rear piggyback reservoir shocks with 7/8" polished shafts
• Dual rate rear coil springs improve performance and ride quality while providing 1.5" of rear lift
• 6061 Aircraft grade aluminum CNC machined components
