ICON 14-18 RAM 2500 4WD 4.5" STAGE 2 SUSPENSION SYSTEM (AIR RIDE)

ICON 2014-18 Ram 2500 4WD, 4.5" Lift, Stage 2 Suspension System, w/ OEM Air Ride

Product Details

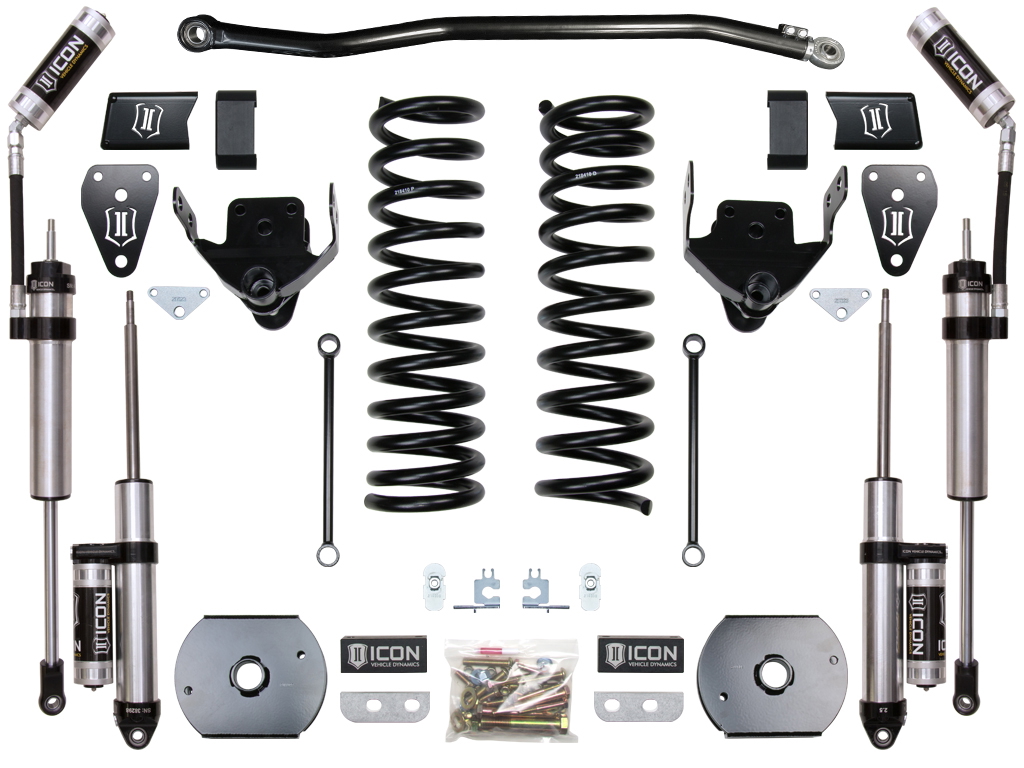

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 2 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, making the Stage 2 system a great choice for any 2014-UP Ram 2500 4WD that's used for daily driving, towing, and recreational off-road driving. This suspension system has been designed specifically by ICON engineers to retain the functionality of factory rear air ride components while also allowing for rear ride height adjustability.

Increased wheel travel and ride quality over stock with no change in towing capacity
Decreased body roll
Level stance from front to rear of vehicle
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality

Technical Notes

OEM Wheels & Tires Fitment: Yes
APPLICATION NOTE #103: Vehicles Equipped With 2 Piece Driveshafts Require Carrier Shim Kit 214211
Ships in Multiple Boxes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #90: May Not Be Compatible With Other Manufacturers Aftermarket Trackbars

Warranty Information

Warranty information unavailable

Compatible Make / Model

Ram 2500 (2014-2018)

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #103: Vehicles Equipped With 2 Piece Driveshafts Require Carrier Shim Kit 214211 Ships in Multiple Boxes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle APPLICATION NOTE #90: May Not Be Compatible With Other Manufacturers Aftermarket Trackbars
UPC	00840103415604
Maximum Lift	4.5
Spring Color	Black
Bushings Included	Yes
Add-On Part	214211 - 14-UP RAM HD 1.75" CARRIER BEARING DROP KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
Width	19.00 in
Length	26.00 in
Depth	10.00 in
Weight	197.0000 lb
