ICON VEHICLE DYNAMICS 20-UP GLADIATOR 2.5" STAGE 3 SUSPENSION SYSTEM

ICON 2020-Up Jeep Gladiator, 2.5" Lift, Stage 3 Suspension System

Product Details

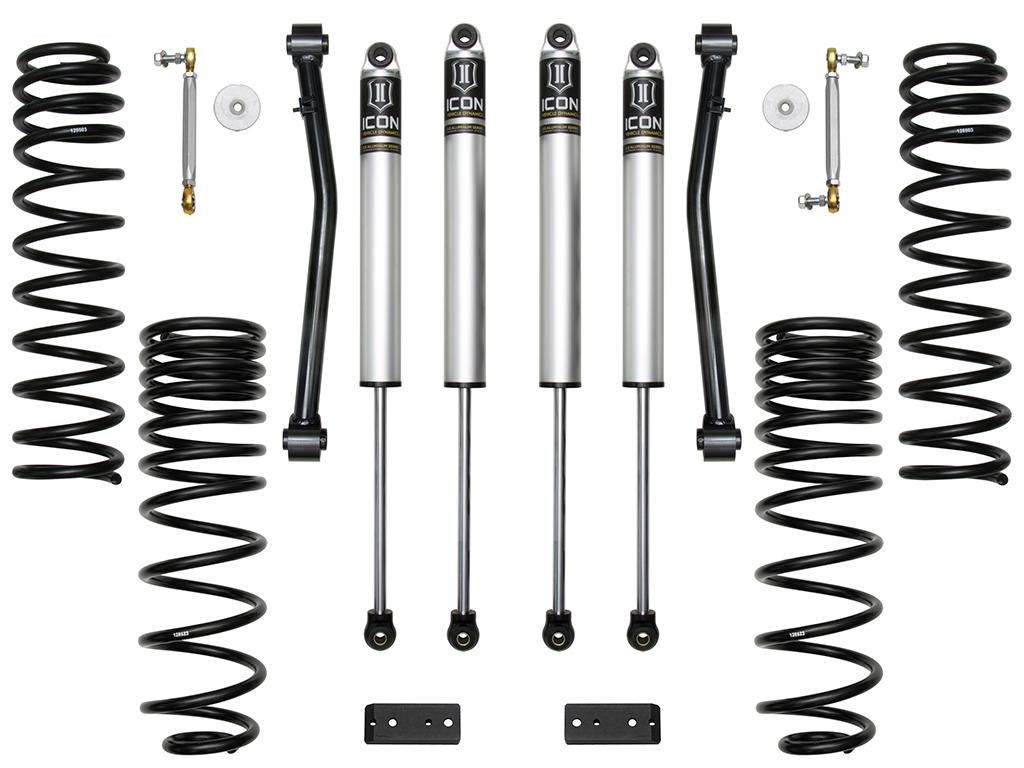

The Stage 3 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for significantly improving on-road ride quality for the daily driven application that will see occasional moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

2.5" lift height
100% bolt-on system makes for an easy install
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Fits 35" tires (37" with extended bump stop spacer kit)
33% front, 23% rear increase in wheel travel
Improves on and off-road ride quality over stock
Front lower links included for caster angle correction and improved front end articualtion
Dual rate front coil springs with lifetime guarantee against sagging/breakage
Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
2.0 Aluminum Series shocks with vehicle specific valving
Adjustable, billet aluminum front sway bar links

Technical Notes

OEM Wheels & Tires Fitment: Yes
Ships In Multiple Boxes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
APPLICATION NOTE #127: Will Not Fit Gladiator Mojave Trim
APPLICATION NOTE #150: Shocks Are Fully Serviceable
TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Jeep Gladiator (2020-2022)

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes Ships In Multiple Boxes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071) APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength APPLICATION NOTE #127: Will Not Fit Gladiator Mojave Trim APPLICATION NOTE #150: Shocks Are Fully Serviceable TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle. TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
UPC	00840103415871
Maximum Lift	2.5
Spring Color	Black
Bushings Included	Yes
Add-On Part	22042 - 20-UP JT / 18-UP JL / 07-18 JK FRONT HYD BUMP STOP KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22071)
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5 w/ 4.5" Backspace / -6mm Offset
Width	13.00 in
Length	21.00 in
Depth	7.00 in
Weight	95.0000 lb
