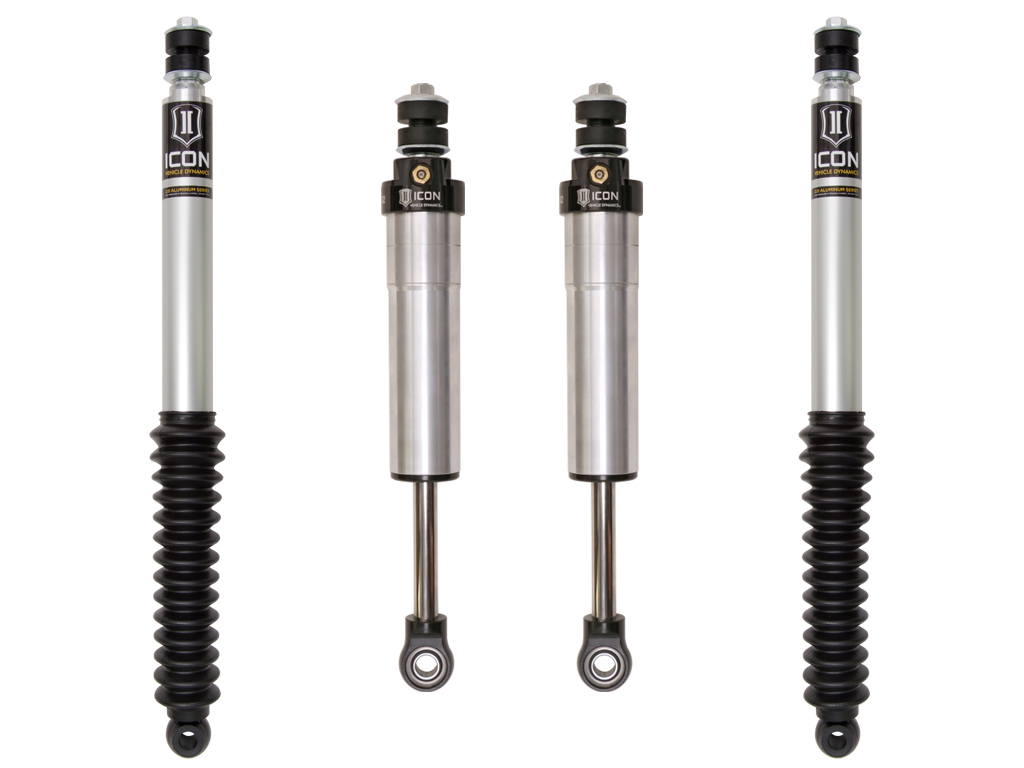

ICON 98-07 Toyota Land Cruiser/Lexus LX470, 0-2" Lift, Stage 1 Suspension System

ICON 1998-2007 Toyota Land Cruiser/Lexus LX470, 0-2" Lift, Stage 1 Suspension System

Product Details

The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Understanding this, ICON engineers have developed a unique 2.5 Aluminum Series front shock that can handle these demands. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads. 2.0 Aluminum Series rear shocks are included in this stage to offer balanced damping front to rear.

Vehicle specific tuned front and rear shocks for superior shock damping and control
6061 Aircraft grade aluminum CNC machined components
2.5 Aluminum Series front shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
FK rod end bearings for extended longevity and minimal deflection
2.0 aluminum body rear IFP shock with 5/8" shaft
100% Bolt-on - no drilling, cutting or welding necessary for install

Technical Notes

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #58: Kits consist of shocks only. Additional components required to achieve desired lift height over stock.
APPLICATION NOTE #72: If alignment cams are adjusted to max inward setting (Negative Camber), arm will contact 2.5 shock at full droop. Aftermarket arm required.
APPLICATION NOTE #97: Not compatible with AHC equipped models

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 17x8.5 with 4.75” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle APPLICATION NOTE #58: Kits consist of shocks only. Additional components required to achieve desired lift height over stock. APPLICATION NOTE #72: If alignment cams are adjusted to max inward setting (Negative Camber), arm will contact 2.5 shock at full droop. Aftermarket arm required. APPLICATION NOTE #97: Not compatible with AHC equipped models
UPC	00840103417158
Adjustable	No
Cylinder Color	Silver
Shaft Material	Chrome
Add-On Part	252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	17x8.5" w/ 4.75” Backspace / 0mm Offset
Width	12.00 in
Length	27.00 in
Depth	6.00 in
Weight	24.0000 lb
