ICON 1991-97 Toyota 80 Series Land Cruiser, 3" Lift, Stage 1 Suspension System

Product Details

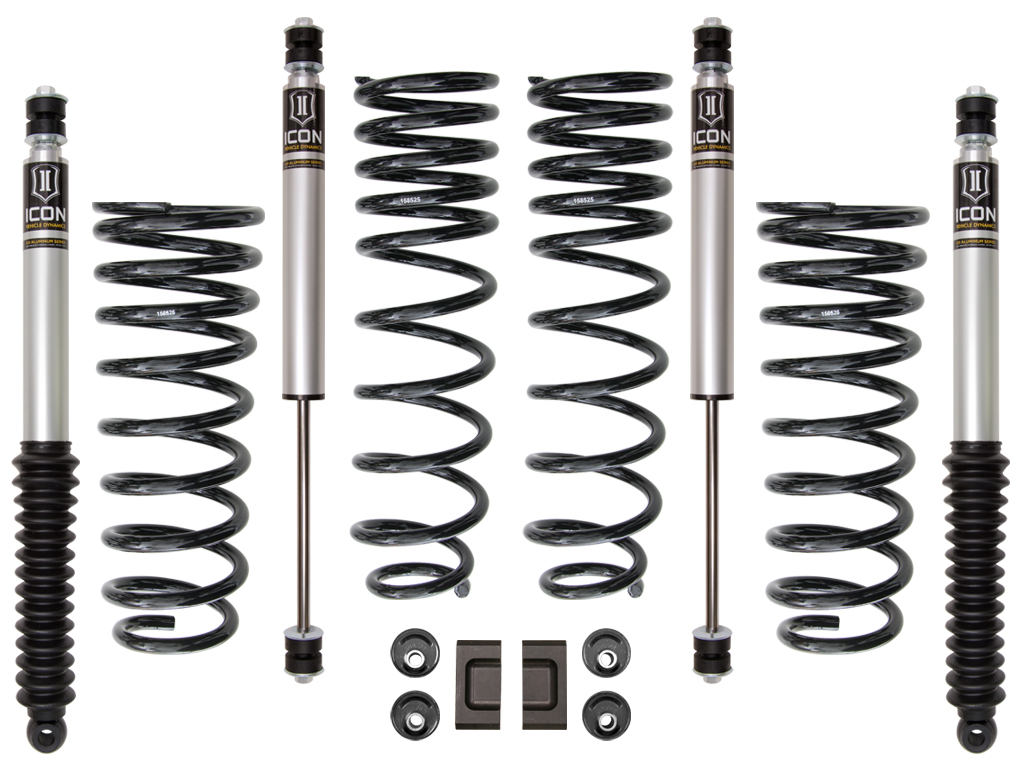

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.

3” lift height
Approximately 40% increased front wheel travel over stock
Approximately 35% increased rear wheel travel over stock
ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
Vehicle specific tuned 2.0 Aluminum Series front and rear shocks offer superior shock damping and control
2.0 aluminum body IFP shocks with 5/8" shaft
Corrosion resistant anodized aluminum shock body
6061 aircraft grade aluminum CNC machined components
100% bolt-on design means no drilling, cutting or welding necessary for install

Technical Notes

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" with 4.63” Backspace
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #150: Shocks Are Fully Serviceable
TECH NOTE: ICON’s advertised lift heights are based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Toyota Land Cruiser (1991-1997)

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 17x8.5" with 4.63” Backspace Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #150: Shocks Are Fully Serviceable TECH NOTE: ICON’s advertised lift heights are based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
UPC	00840103417189
Maximum Lift	3
Spring Color	Black
Bushings Included	Yes
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	17x8.5" w/ 4.63” Backspace
Width	13.00 in
Length	21.00 in
Depth	7.00 in
Weight	109.0000 lb
