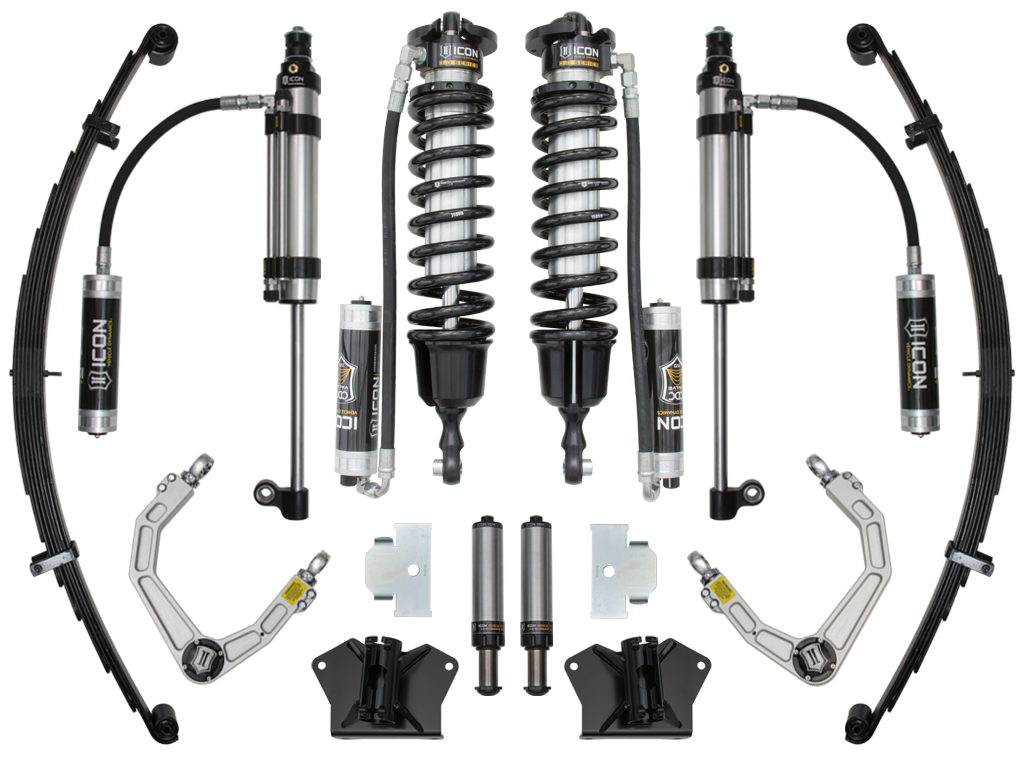

ICON 2007-21 Toyota Tundra, 1.63-3" Lift, 3.0 Stage 3 Suspension System

Product Details

2007-2021TUNDRA 1.63-3" LIFT STAGE 3 3.0 SUSPENSION SYSTEM

Technical Notes

OEM Wheels & Tires Fitment: Yes
TECH NOTE: Not compatible with TRD rear sway bar kit
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #17: These Are Stand-Alone Kits And Are Not To Be Used In Conjunction With Any Other Aftermarket Kits
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #110: Trimming required for recommended tire size
APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Toyota Tundra (2007-2021)

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes TECH NOTE: Not compatible with TRD rear sway bar kit Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #17: These Are Stand-Alone Kits And Are Not To Be Used In Conjunction With Any Other Aftermarket Kits APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle APPLICATION NOTE #110: Trimming required for recommended tire size APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
UPC	00840103417646
Maximum Lift	3.5
Spring Color	Black
Bushings Included	Yes
Add-On Part	191014 - .25" COLLAR SPANNER PIN WRENCH
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Width	40.00 in
Length	55.00 in
Depth	19.00 in
Weight	341.0000 lb
