ICON 2022-Up Toyota Tundra 1.25-2.25" Lift Stage 3, 2.5 Suspension System

ICON 2022-2024 Toyota Tundra, 1.25-2.25" Lift, Stage 3, 2.5 Suspension System

Product Details

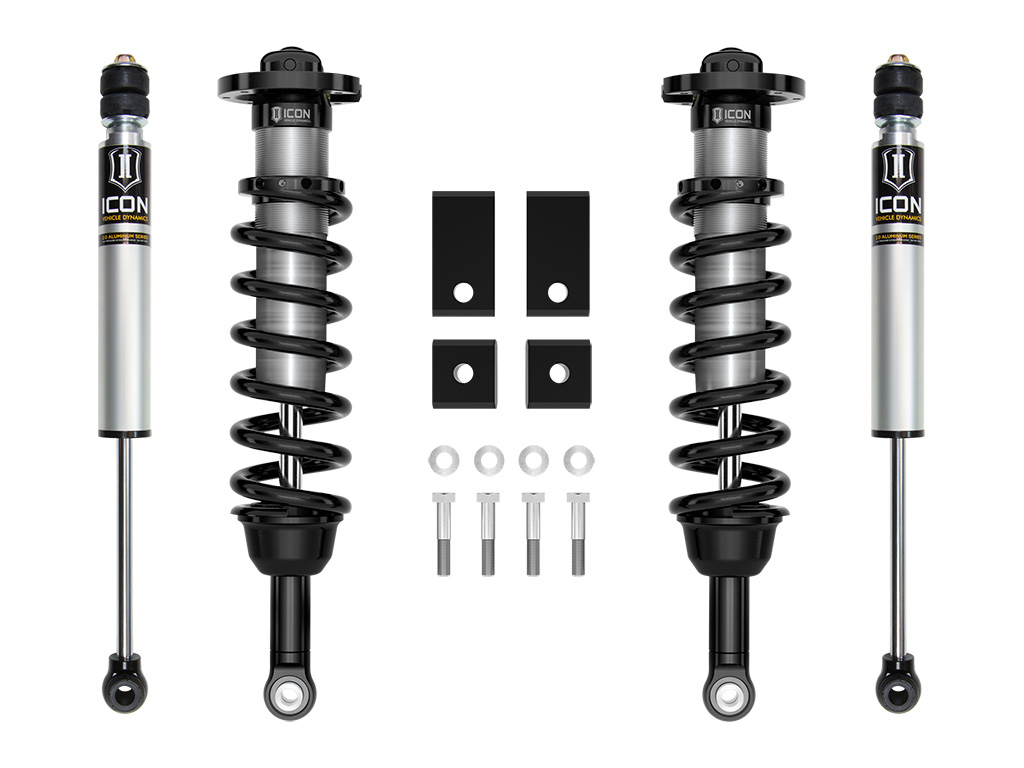

The ICON Vehicle Dynamics Stage 3 complete suspension system for the 2022-2024 Toyota Tundra is our most basic system that features complete ICON threaded-body V.S. 2.5 Series Coilovers in the front, this system offers improved on- and off-road performance as well as adjustable front-end lift and leveling for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shocks a sway bar drop kit for the front of the truck is included along with our proven 2.0 nitrogen charged monotube shock with internal reservoir for the rear.This Stage 3 system features the 2022-2024 Toyota Tundra VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 1.25-2.25” of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.Rounding out the Stage 3 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2022-2024 Tundra. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

Vehicle specific design for 2022-2024 Toyota Tundra
2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
Adjustable front ride heights from 1.25-2.25” of front lift over stock when used with stock UCAs
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
All ICON shock absorbers are fully rebuildable and re-tunable
100% Bolt-on system - no drilling, cutting, or welding necessary for install

Technical Notes

OEM Wheels & Tires Fitment: Yes
TECH NOTE: If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-2.25" over stock
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.25" over stock
TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock
TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-3.25” over stock
TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift lange.
APPLICATION NOTE #142: Not compatible with Tundras equipped with Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #148: ICON does not recommend lifting above 2.25" of lift without an ICON upper control arm, failure to do so can result in improper wheel alignment and cause damage to front axles on 4WD models
APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required for TRD Pro.
APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required

Warranty Information

Warranty information unavailable

Compatible Make / Model

Toyota Tundra (2022-2024)

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes TECH NOTE: If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-2.25" over stock TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.25" over stock TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-3.25” over stock TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro. Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift lange. APPLICATION NOTE #142: Not compatible with Tundras equipped with Load-Leveling Rear Height Control Air Suspension. APPLICATION NOTE #148: ICON does not recommend lifting above 2.25" of lift without an ICON upper control arm, failure to do so can result in improper wheel alignment and cause damage to front axles on 4WD models APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required for TRD Pro. APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
UPC	00840103420646
Maximum Lift	2.25
Front Spring Rate Type	Linear
Spring Color	Black
Bushings Included	Yes
Adjustable Damping	No
Add-On Part	198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels	17x8.5" w/ 5.75” Backspace / 25mm Offset
Maximum Lift Front	2.25
Minimum Lift Front	.75
Width	13.00 in
Length	31.00 in
Depth	7.00 in
Weight	61.0000 lb
