K53367T

Product Details

ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 7 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.The included ICON tubular upper control arm kit is designed to improve the overall performance of the Land Cruiser with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON tubular rear lower links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series Stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

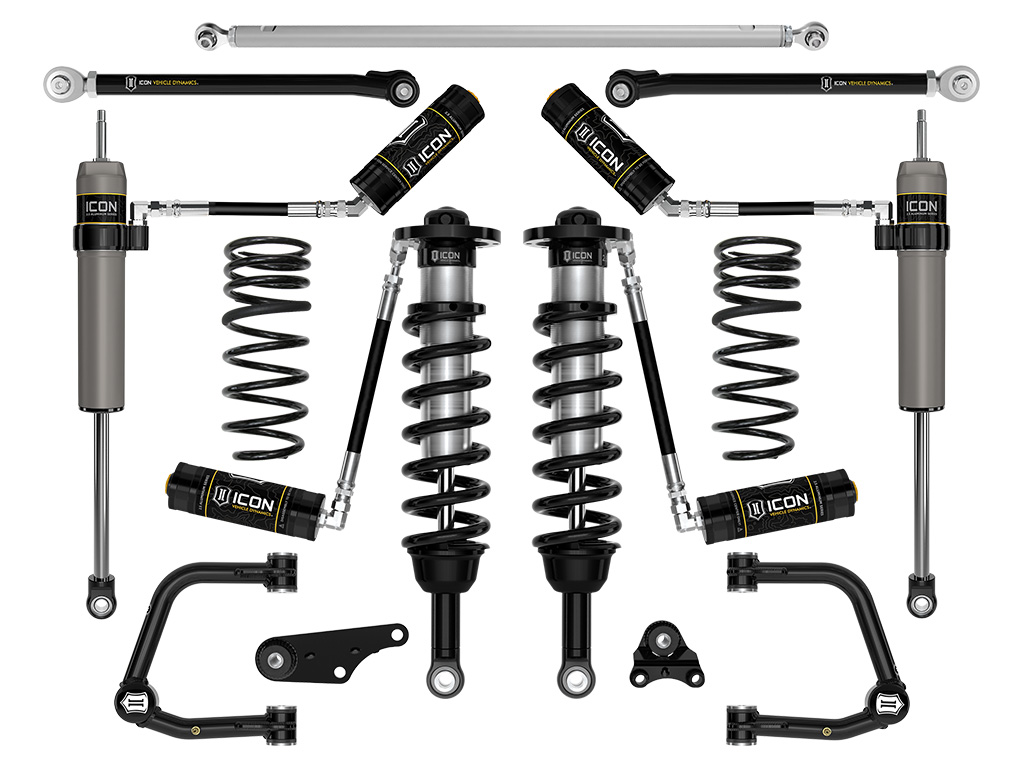

  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
  • Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
  • Increased wheel travel and improved ride quality over stock
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
UPC 00840103430669
Maximum Lift 3
Front Spring Rate Type Linear
Rear Spring Rate Type Progressive Dual Rate
Spring Color Black
Bushings Included Yes
Adjustable Damping No
Add-On Part 198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
Maximum Lift Rear 2
Maximum Lift Front 3
Minimum Lift Front 1.25
Width 13.00 in
Length 31.00 in
Depth 7.00 in
Weight 220.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2024 Toyota Land Cruiser 250 Series, 1.25-3" Lift, Stage 7 Suspension System, Tubular

K53367T

0 in stock , backorders available

$5,825.05
