ICON 2017-Up Ford F250/F350, 2.5-3" Lift, Stage 2 Coilover Conversion System

ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System

Product Details

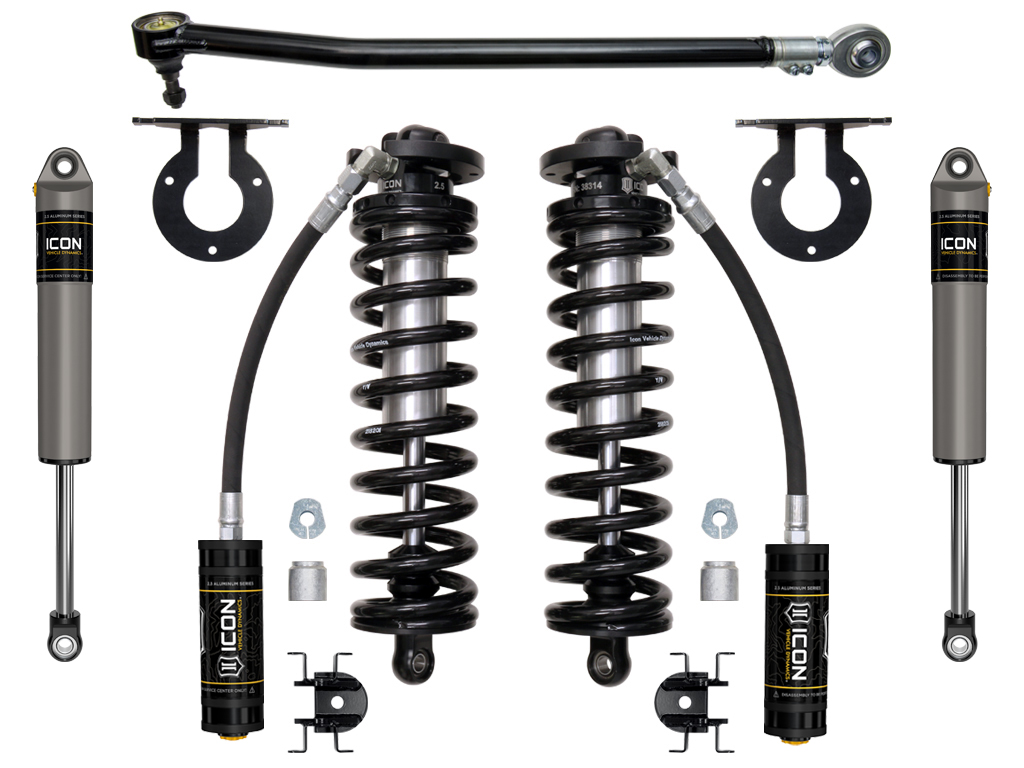

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2024 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

  • Bolt-in system fits in OE coil bucket location
  • FK Rod End bearings for extended longevity and minimal deflection
  • Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck
  • Decreased body roll and improved on and off-road ride dynamics
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • Shocks are fully rebuildable and revalveable
  • Coilover conversion allows for addition of secondary shock
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Eibach coil springs guaranteed for life against sagging or breakage

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • APPLICATION NOTE #120: Secondary Shock Options Available, Contact ICON For More Details
  • TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 2.5-3" over stock
  • TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock
  • TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.
  • TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock
  • TECH NOTE: 2023-2024 Super Duty diesel models without Tremor package will have front lift height range of 2.5-3" over stock
  • TECH NOTE: 2023-2024 Super Duty diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock
  • TECH NOTE: 2023-2024 Super Duty gas models without Tremor package will have front lift height range of 3-3.5" over stock
  • TECH NOTE: 2023-2024 Super Duty gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock
  • TECH NOTE: Not compatible with F-350 Cab & Chassis models
  • TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
  • TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
  • TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.

Warranty Information

Warranty information unavailable

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • APPLICATION NOTE #120: Secondary Shock Options Available, Contact ICON For More Details
  • TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 2.5-3" over stock
  • TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock
  • TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.
  • TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock
  • TECH NOTE: 2023-2024 Super Duty diesel models without Tremor package will have front lift height range of 2.5-3" over stock
  • TECH NOTE: 2023-2024 Super Duty diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock
  • TECH NOTE: 2023-2024 Super Duty gas models without Tremor package will have front lift height range of 3-3.5" over stock
  • TECH NOTE: 2023-2024 Super Duty gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock
  • TECH NOTE: Not compatible with F-350 Cab & Chassis models
  • TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
  • TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
  • TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
UPC 00840103418421
Maximum Lift 3
Front Spring Rate Type Linear
Spring Color Black
Bushings Included Yes
Adjustable Damping No
Add-On Part 191014 - .25" COLLAR SPANNER PIN WRENCH
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Maximum Lift Front 3
Minimum Lift Front 2.5
Width 13.00 in
Length 31.00 in
Depth 7.00 in
Weight 121.0000 lb
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System
Brand: ICON Vehicle Dynamics

ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 2 Coilover Conversion System

K63142

0 in stock , backorders available

$3,707.08
