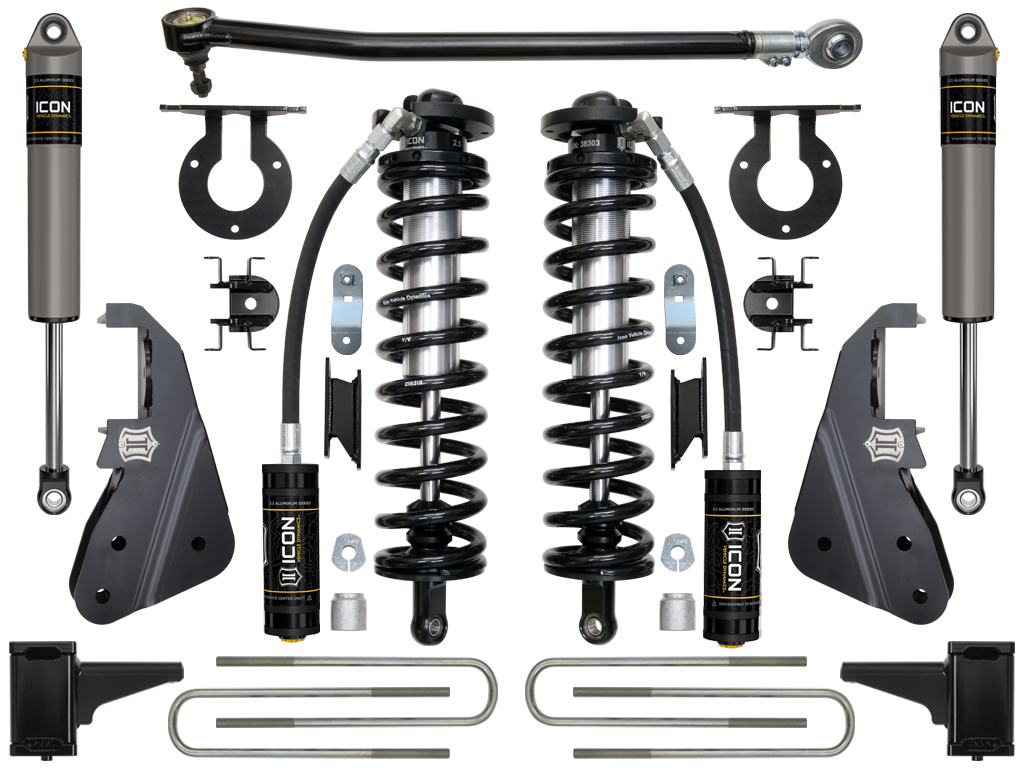

ICON 2017-Up Ford F250/F350, 4-5.5" Lift, Stage 2 Suspension System

ICON 2017-2022 Ford F250/F350, 4-5.5" Lift, Stage 2 Suspension System

Product Details

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.

Bolt-in system fits in OE coil bucket location
Eibach coil springs guaranteed for life against sagging or breakage
FK Rod End bearings for extended longevity and minimal deflection
Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
Increased wheel travel and ride quality over stock
Decreased body roll and improved on and off-road ride dynamics
Vehicle-specific shock valving provides unparalleled ride quality and control
Shocks are fully rebuildable and revalveable
Coilover conversion allows for addition of secondary shock
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts

Technical Notes

OEM Wheels & Tires Fitment: Yes
APPLICATION NOTE #120: Secondary Shock Options Available, Contact ICON For More Details
TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 4-5.5 over stock
TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.75-6.25" over stock
TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: Track bar bracket part number 64039 is optional, but recommended to correct steering geometry.
Ships in multiple boxes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #120: Secondary Shock Options Available, Contact ICON For More Details TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 4-5.5 over stock TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.75-6.25" over stock TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) TECH NOTE: Track bar bracket part number 64039 is optional, but recommended to correct steering geometry. Ships in multiple boxes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700) APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
UPC	00840103418483
Maximum Lift	5.5
Spring Color	Black
Bushings Included	NO
Add-On Part	65000 - 05-22 FSD DUAL STABILIZER KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Width	12.00 in
Length	27.00 in
Depth	10.00 in
Weight	204.0000 lb
