Product Details

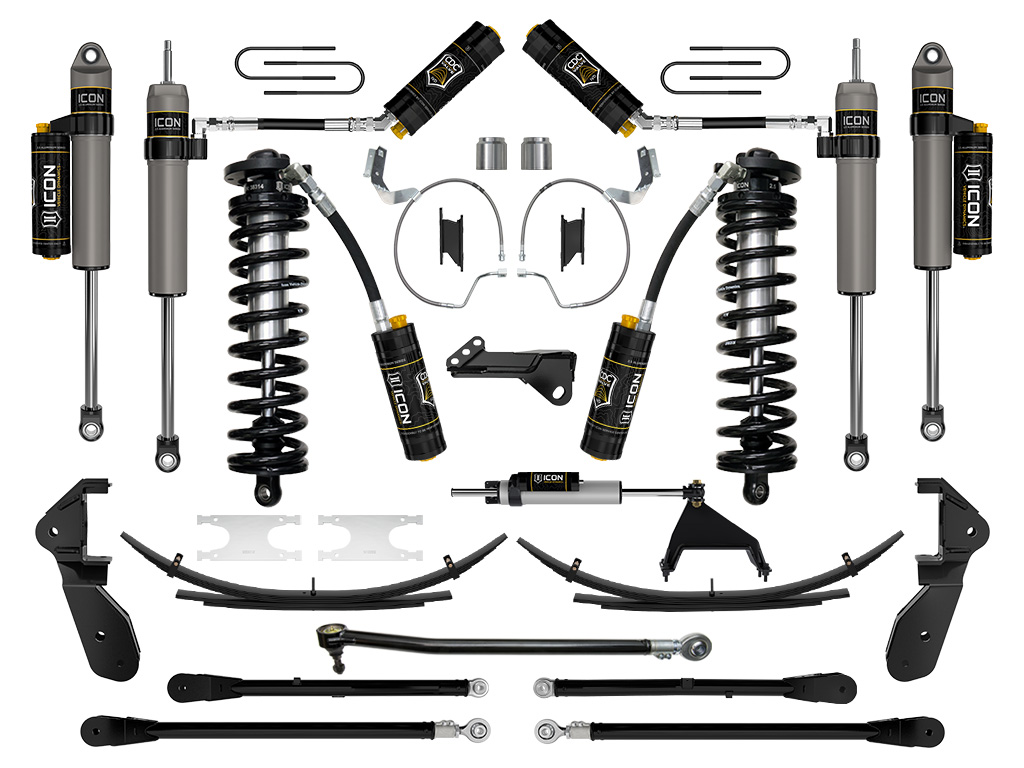

This ICON Vehicle Dynamics 4-5.5” coilover conversion system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 7 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and more aggressive off-road adventures.ICON's 4-5.5” Lift Stage 7 Coilover Conversion System features 2.5 Series CDCV remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. To take advantage of the coilover's option to mount secondary shocks in the stock location, 2.5 Aluminum Series CDCV remote reservoir secondary front shocks are included, effectively doubling shock damping ability on the front of the vehicle. ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.ICON’s Centerline steering stabilizer kit features a 2.5 Aluminum Series shock absorber with a piggyback reservoir for improved steering damping compared to ICON dual 2.0 steering stabilizers, better controlling undesirable steering feedback caused by larger tires while also improving ground clearance. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. The included ICON CDC Valves are externally adjustable valves that restrict oil flow into the reservoir which creates 10 levels of compression damping force ranges. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

• Fits 2023 F-250 / F-350 4WD applications
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry
• Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
• ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
• Stainless steel braided front brake lines
• Leaf spring expansion packs improve ride quality and provide 2" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Corrosion resistant hard anodized steering stabilizer, front-secondary, and rear shock bodies with 7/8" shafts
• Shocks are fully rebuildable and re-tunable
• Lifetime guarantee against coil spring breakage or sagging
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Bolt-in system fits in OE coil bucket location
• Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
• Vehicle-specific shock valving provides unparalleled ride quality and control
• ICON 2.5 Aluminum Series remote reservoir secondary front shocks for increased damping ability and off-road performance
• ICON 2.5 Aluminum Series piggyback reservoir rear shocks
• Front, front-secondary, and rear shocks are all ICON CDCV equipped for 10 settings of external compression damping adjustment
• Increased wheel travel and ride quality over stock
• ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
