K63178

Product Details

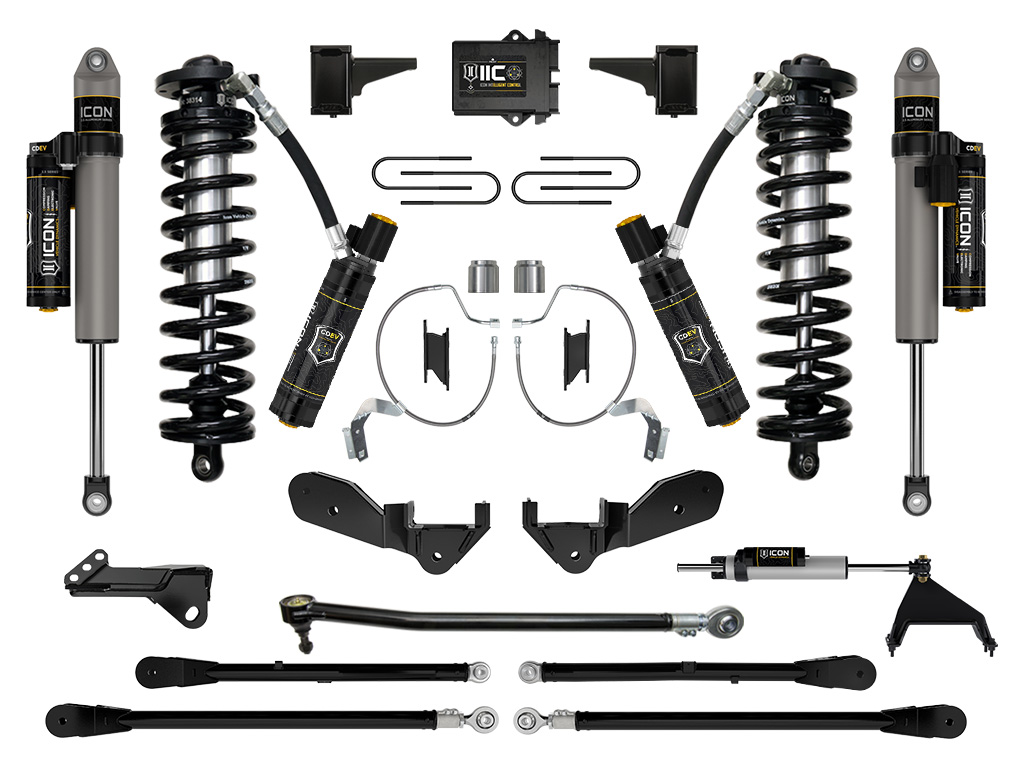

This ICON Vehicle Dynamics 4-5.5” coilover conversion system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 8 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and more aggressive off-road adventures.ICON's 4-5.5” Lift Stage 8 Coilover Conversion System features 2.5 Series CDEV remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.ICON’s Centerline steering stabilizer kit features a 2.5 Aluminum Series shock absorber with a piggyback reservoir for improved steering damping compared to ICON dual 2.0 steering stabilizers, better controlling undesirable steering feedback caused by larger tires while also improving ground clearance. Heavy-duty fabricated 5" rear blocks and U-bolt kit lift the rear of the vehicle and are designed to withstand heavy towing/hauling duty as well as the stresses of aggressive off-road use. ICON 2.5 Aluminum Series CDEV piggyback reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

  • Fits 2023 F-250 / F-350 4WD applications
  • Track bar drop bracket reduces track bar angle and corrects bump steer geometry
  • Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
  • ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
  • Stainless steel braided front brake lines
  • Heavy-duty fabricated rear lift blocks
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • Corrosion resistant hard anodized steering stabilizer and rear shock bodies with 7/8" shafts
  • Shocks are fully rebuildable and re-tunable
  • Lifetime guarantee against coil spring breakage or sagging
  • Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
  • Bolt-in system fits in OE coil bucket location
  • Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • ICON 2.5 Aluminum Series piggyback reservoir rear shocks
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
  • Increased wheel travel and ride quality over stock
  • ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • APPLICATION NOTE #151: Fits single rear wheel models only
  • TECH NOTE: Will not fit 2024 models
  • TECH NOTE: Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
  • TECH NOTE: Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
  • TECH NOTE: Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
  • TECH NOTE: Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
  • TECH NOTE: Will not fit F-350 Cab & Chassis models
  • TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
  • TECH NOTE: If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required. If secondary shocks are CDEV equipped, part number 191207 is also required.
  • TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
  • APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
  • APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details

Warranty Information

Warranty information unavailable

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • APPLICATION NOTE #151: Fits single rear wheel models only
  • TECH NOTE: Will not fit 2024 models
  • TECH NOTE: Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
  • TECH NOTE: Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
  • TECH NOTE: Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
  • TECH NOTE: Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
  • TECH NOTE: Will not fit F-350 Cab & Chassis models
  • TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
  • TECH NOTE: If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required. If secondary shocks are CDEV equipped, part number 191207 is also required.
  • TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
  • APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
  • APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details
UPC 00840103428406
Front Spring Rate Type Linear
Spring Color Black
Bushings Included Yes
Adjustable Damping Yes
Damping Adjustment Type Electronic
Add-On Part 67811P - 23-24 FSD 4.5" FRONT 2.5 VS RR PAIR
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Maximum Lift Rear 2
Maximum Lift Front 6
Minimum Lift Front 3
Width 13.00 in
Length 31.00 in
Depth 7.00 in
Weight 321.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2023 Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 8 Coilover Conversion System

K63178

0 in stock , backorders available

$11,476.95 $8,744.32
