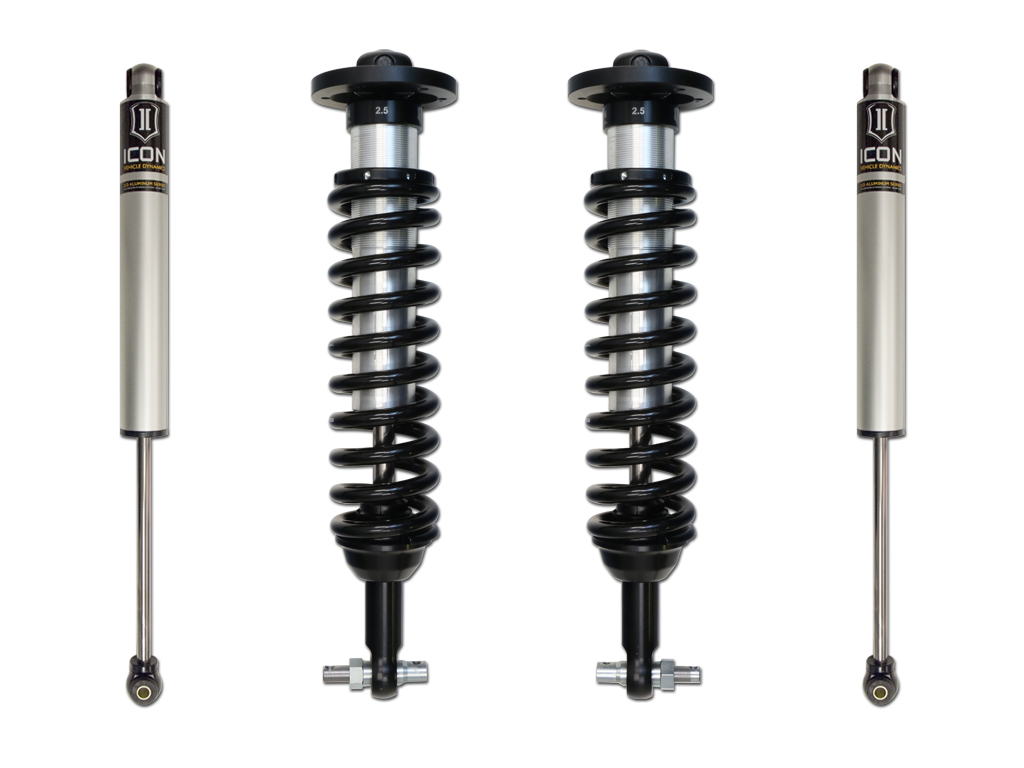

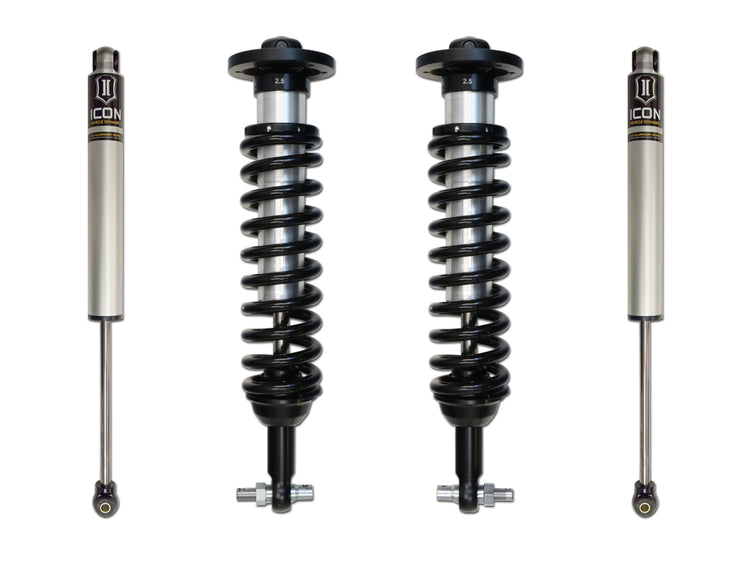

ICON 2014 Ford F150 4WD, 0-2.63" Lift, Stage 1 Suspension System

Product Details

ICON Vehicle Dynamics 2014 Ford F150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.63” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2014 F150 4WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • Adjustable coilovers provide 0-2.63" of lift height
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • High strength alloy CNC machined lower bar pin
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 aluminum body IFP rear shock with 5/8" polished shaft
  • 100% bolt-on system - no drilling, cutting, or welding necessary for install

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • TECH NOTE: Not compatible with models equipped with CNG or LPG fueled engines
  • Ships in multiple boxes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • TECH NOTE: Only compatible with 4-wheel drive (4WD) models
  • TECH NOTE: Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
  • TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • TECH NOTE: Not compatible with models equipped with CNG or LPG fueled engines
  • Ships in multiple boxes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • TECH NOTE: Only compatible with 4-wheel drive (4WD) models
  • TECH NOTE: Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
  • TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
UPC 00840103419831
Maximum Lift 2.63
Spring Color Black
Bushings Included NO
Add-On Part 198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Width 13.00 in
Length 31.00 in
Depth 7.00 in
Weight 62.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2014 Ford F150 4WD, 0-2.63" Lift, Stage 1 Suspension System

K93061

0 in stock , backorders available

$2,078.85
