Product Details

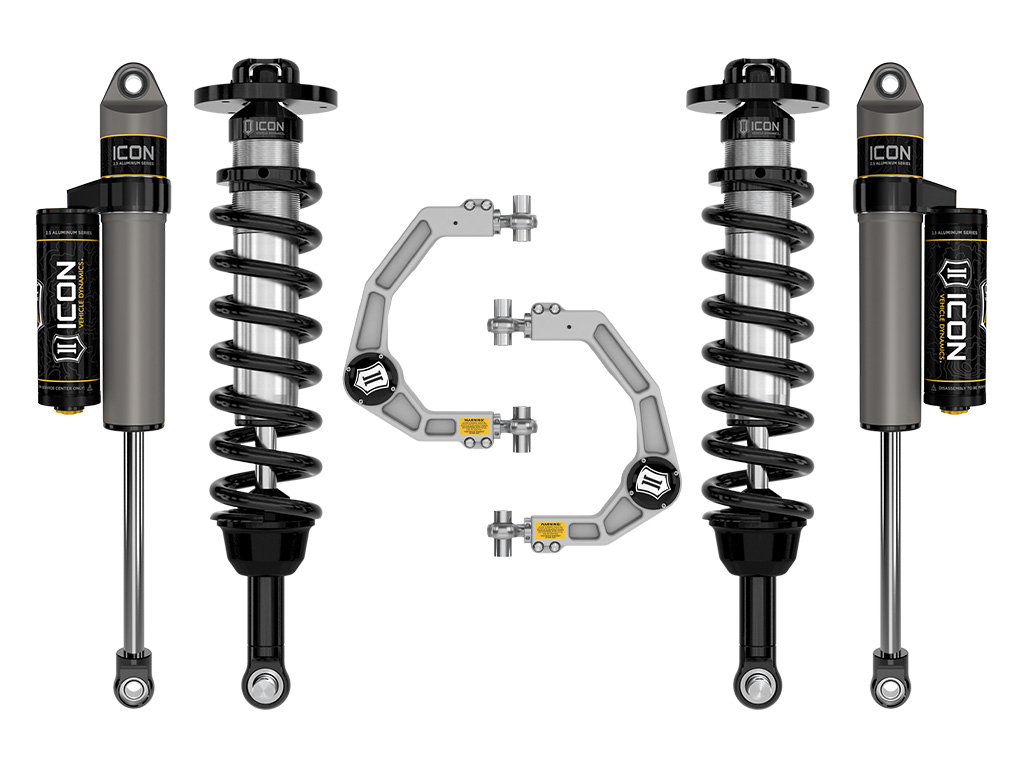

ICON Vehicle Dynamics 2021-2023 Ford F-150 Tremor suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks in a F-150 Tremor specific length for a 20% increase in front wheel travel over stock. These coilovers feature internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 2.5-3” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Billet aluminum Delta Joint PRO upper control arms on the F-150 Tremor not only add strength and durability, but help retain factory alignment spec range, offer caster/camber adjustment, and allow for the extra lift height this system provides. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving and offer increased damping and head dissipation, balancing the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2023 F-150 Tremor Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.This system features upper control arms with ICON's patented Delta Joint PRO. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected, and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.

• Adjustable coilovers in F-150 Tremor specific length offer 2.5-3" of front lift height over stock
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
• 20% increase in wheel travel and improved ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
• 6061 Aircraft grade aluminum CNC machined components
